Atlas 9KOHX 9,000 lb Overhead 2-Post Lift

9KOH 9000 lbs 2 Post Lift by Atlas
Struggling to find a solution that works for both the Mini Cooper and an F-150? The Atlas® 9KOHX is here to break you out of lift limbo and into a world of possibilities. This lift is a marvel with a 9,000-pound lifting capacity that adapts to your garage and your fleet.
With its adjustable height and configurable arms, it’s like having multiple lifts in one. Its symmetric-to-asymmetric flexibility means you can cradle a lowered sports car one day and hoist a hefty pickup the next. The spring-loaded Secondary Lock System (SLS) is standing by 24/7, ready to catch any slack faster than you can blink. Don’t let inflexible lifts hold you back – with the Atlas® 9KOHX, you’re not just lifting vehicles; you’re entering a realm of productivity you have only daydreamed of before.
Atlas 9KOHX Specifications:
Capacity 9,000 LB.
Overall Height 138″ (11’ 6″) or 142” (11’ 10”)
Overall Floor Width 134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column 124 7/8″ (10’ 4 7/8″)

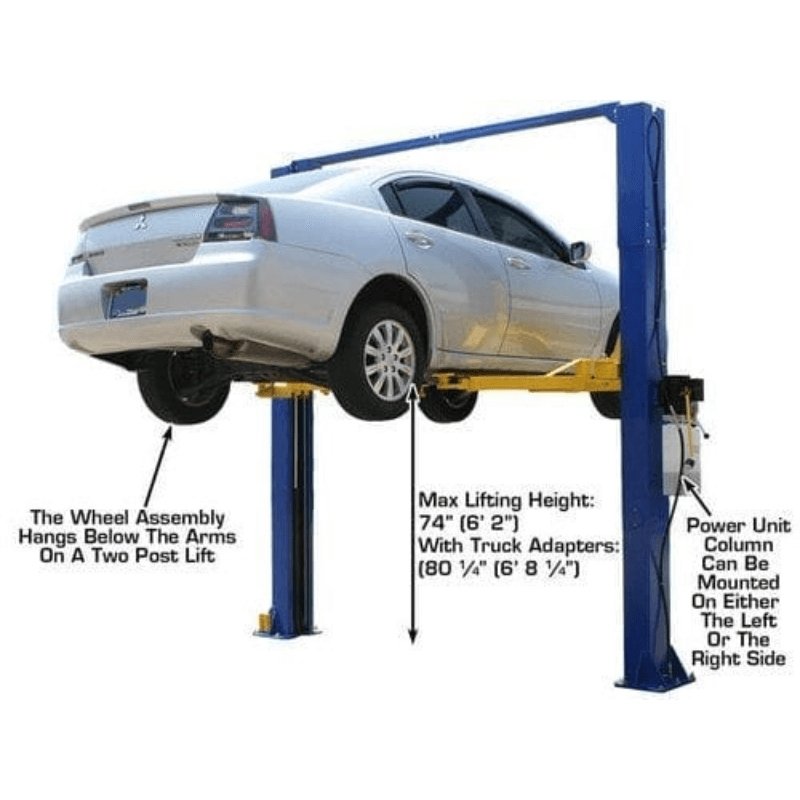

Maximum Lift Height (Without Adapters) 74 1/2″
Maximum Lift Height (With Adapters) 81″
Minimum Arm Height 4″
Inside Column 110” (9’ 2”)
Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric

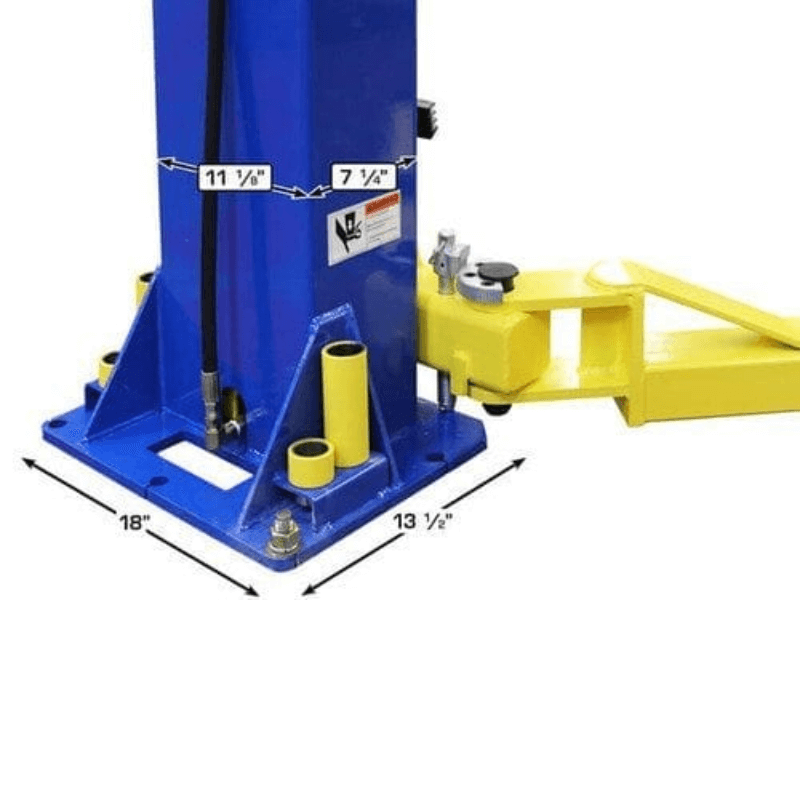

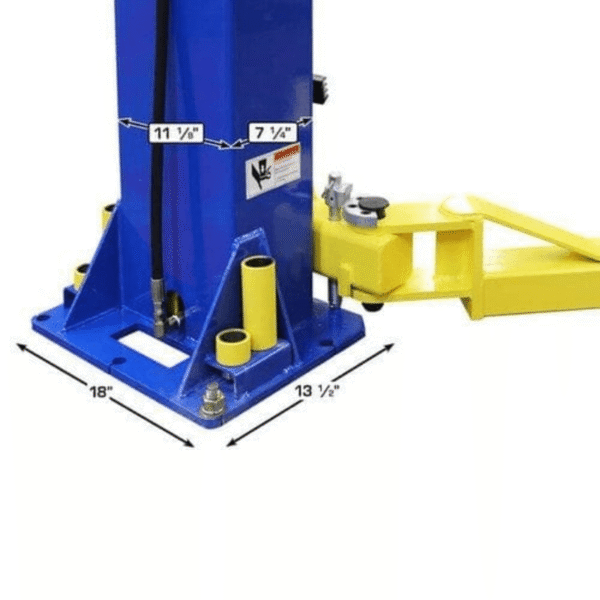

Column Size 7 1/4″ x 11″
Column Thickness of Steel 5mm
Base Of Lift 14 1/4″ x 18″
Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,450 LBS.
Pallet Size:  113″ Long x 40″ Tall x 22″ Wide + Box strapped to top of pallet
Adapter Heights 4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size 1.5”
Requires a minimum of 4″ of concrete with a 3000 psi. rating
9KOHX 9,000 lb 2 Post Lift Special Features:
Overhead, Open Floor Design

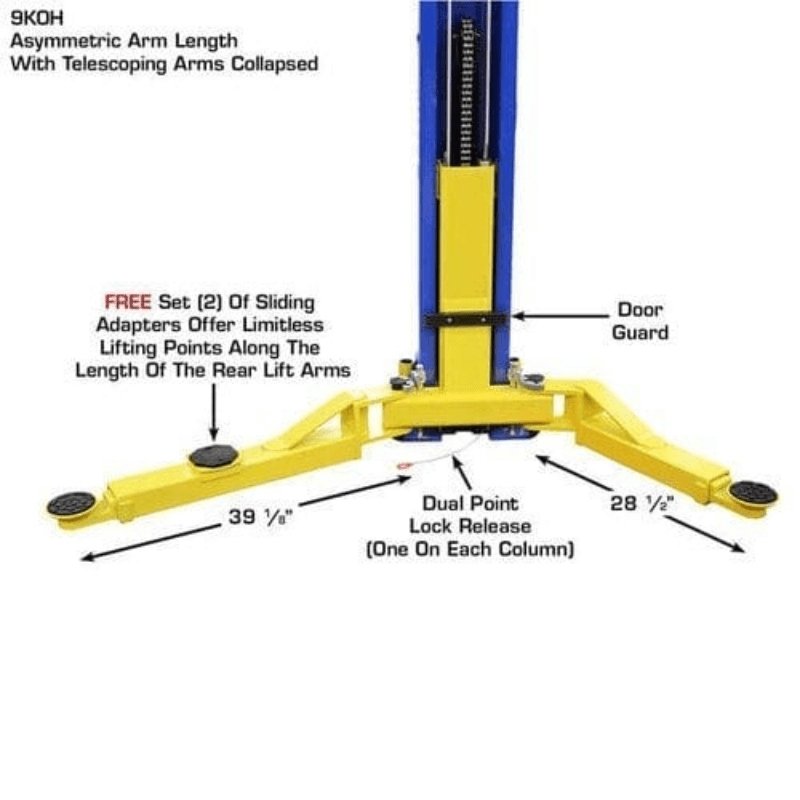

Asymmetric & Symmetric Arms
Automatic Arm Restraints
Lock Release: Dual Point
Rubber Guards on the Carriage
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System
Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
Unit Includes:
    Mounting Hardware
    8-piece Truck Adapter Set
    Sliding Arm Adapters
