A 10.5 HP/344cc Briggs & Stratton® engine is designed to deliver reliable power to tackle your yard
LED headlight helps provides visibility for mowing in low light conditions
Fully pressurized with automotive-style oil pump

Hydrostatic drive transmission
Cub Cadet® open high-back seat designed with over sized base and elevated back support

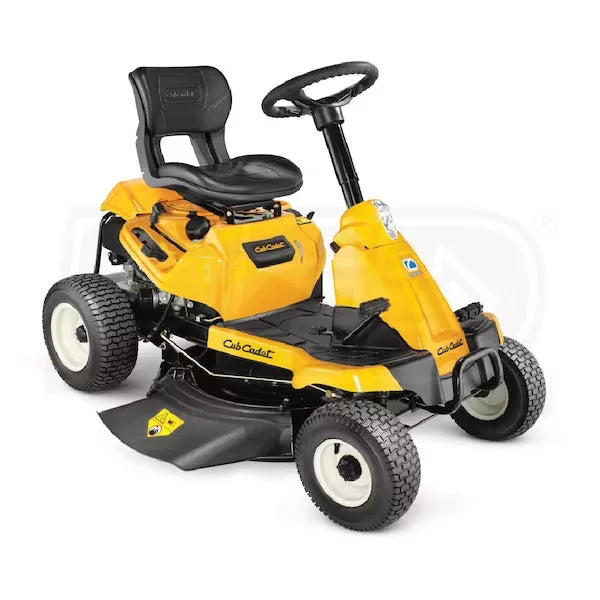

Small Riding Mower

Specs

Engine

Engine Brand Briggs & Stratton®
Engine Model Powerbuilt
Engine Model Number 21R707-0152
Engine Displacement 344cc
Engine Output 10.5HP
Starter Type Electric
Fuel Tank Capacity 1.3 gal. US (4.92 L )
Cylinders Single
Engine Start Ignition Key
Engine Oil Capacity 1.5 qt. US (1.42 L)
Lubrication Fully pressurized
Charging System 3.75 amp regulated
Fuel Gauge No
Governor Mechanical
Choke Choke-a-matic
Air Filter Single element
Oil Filter No
Fuel Delivery Carburetor

Battery

Battery 150 CCA
Battery Type AGM (Absorbent Glass Mat)
Battery Voltage 12V

Drive System

Transmission Hydro-Gear T2HP
Forward Speed 4 MPH / 6.4 km/h
Reverse Speed 2 MPH / 3.2 km/h
Rear Axle 3/4″
Drive System Hydrostatic
Transmission Control Foot Pedal
Transmission Housing Aluminum
Rear Differential Lock No

Cutting Deck

Deck Cutting Width 30 in
Deck Wash Yes
Deck Material 14-gauge steel
Deck Engagement (PTO) Manual
Deck Construction Stamped
Blade(s) One
Deck Lift Manual
Cutting Height Range 1.5″ – 4″
Anti-Scalping No
Deck Positions 5

Chassis

Frame Robotically welded
Turning Radius 18″
Bumper Steel tube
Rear Tow Hitch Yes
Corrosion Protection Yes
Front Pivot Bar 14-gauge steel

Controls

Cruise Control No
Brakes Disc

Comfort

Seat Type 15″ high-back
Armrests No
Seat Adjustment Knob
Floor Mats Integrated

Wheels

Bearing Type Poly Bushing
Rear Tires 16″x 6.5″-8″
Front Tires 13″x 5″-6″
Tire Tread Turf Saver

Specifications

Series CC30 Series

Additional Specifications

Hour Meter No
Mulch Kit Included
Headlight(s) LED
Cup Holder Yes
Operator Presence System Yes
Model Number 13AC21JDA10

Warranty

Residential Warranty 3-year limited residential
Frame Warranty 3-year limited
Front Axle Warranty 3-year limited
Deck Shell Warranty 3-year limited
