10.5 HP*/344cc Briggs & Stratton® engine designed for reliable starting
30″ side-discharge steel cutting deck is designed to fit through gates 36″ wide or larger and is an ideal choice for small or gated yards up to 1/2 acre.
6-speed Shift On The Go™ transmission has a dash panel control that is easy to see and adjust
Space-saving design makes the TB30B riding mower easy to store in garages and sheds
Help keep your lawn healthy and return nutrients into the soil by using the included mulch plug and help avoid thatch

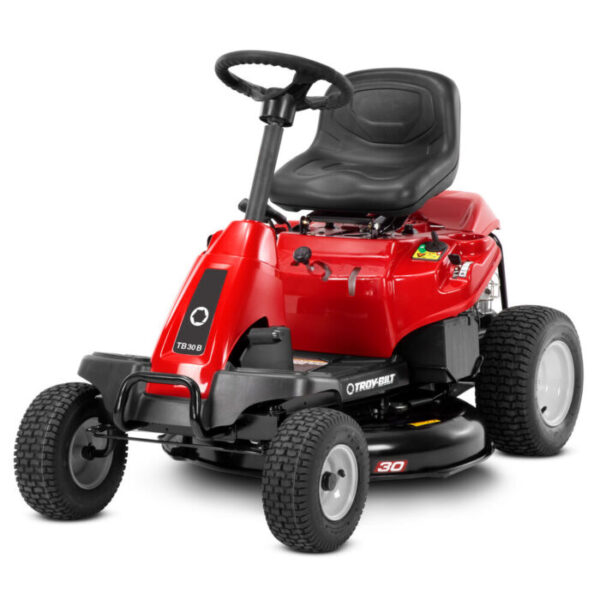

Small Riding Mower

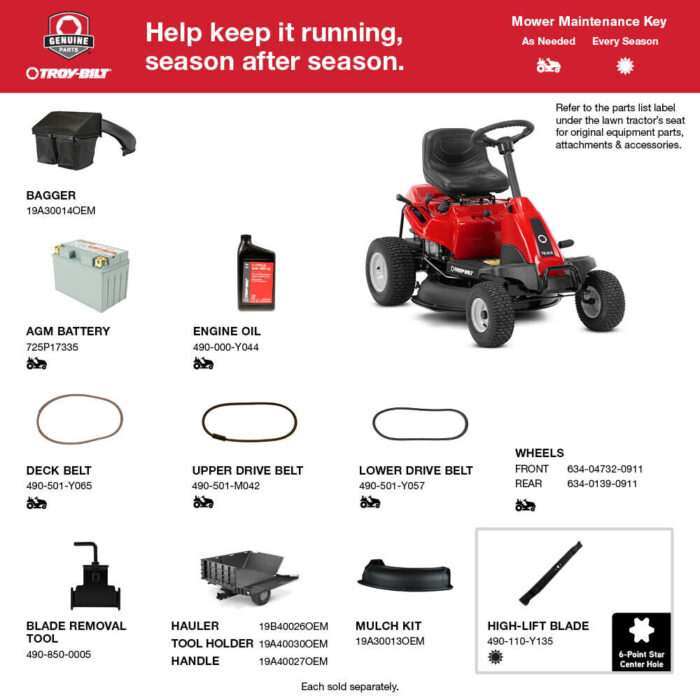

Specs & Maintenance

Engine

Engine BrandBriggs & Stratton®
Engine ModelPower Built
Engine Model Number21R707-0152
Engine Displacement344cc
Engine Output10.5HP
Starter TypeElectric
Fuel Tank Capacity1.3 gal. US (4.92 L )
CylindersSingle
Engine StartIgnition Key
Engine Oil Capacity1.5 qt. US (1.42 L)
LubricationFully pressurized
Charging System3 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterNo
Fuel DeliveryCarburetor

Battery

Battery135 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V

Drive System

TransmissionTroy-Bilt
Forward Speed4.25 MPH / 6.7 km/h
Reverse Speed2 MPH / 3.2 km/h
Drive SystemCVT
Transmission Control6-Speed Hand Lever
Transmission HousingAluminum

Cutting Deck

Deck Cutting Width30 in
Deck WashNo
Deck Material14-gauge steel
Deck Engagement (PTO)Manual
Deck ConstructionStamped
Blade(s)1
Deck LiftHand lever
Cutting Height Range1.5″ – 4″
Anti-ScalpingN/A
Deck Positions5

Chassis

FrameRobotically welded
Turning Radius18″
BumperNo
Rear Tow HitchYes
Corrosion ProtectionYes
Front Pivot Bar14-gauge steel

Controls

Cruise ControlNo
BrakesDisc

Comfort

Seat TypeMid-back
ArmrestsNo
Seat AdjustmentKnob
Floor MatsIntergral

Wheels

Bearing TypePoly Bushing
Rear Tires16″x 6.5″-8″
Front Tires13″x 5″-6″
Tire TreadTurf Saver

Additional Specifications

Mulch KitIncluded
Headlight(s)No
Cup HolderYes
Operator Presence SystemYes
Model Number13AC26JDA23

Warranty

Residential Warranty2-year limited residential
Frame Warranty2-year limited
Front Axle Warranty2-year limited
Deck Shell Warranty2-year limited
Commercial WarrantyNo

Disclaimers

SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower*As rated by engine manufacturer
