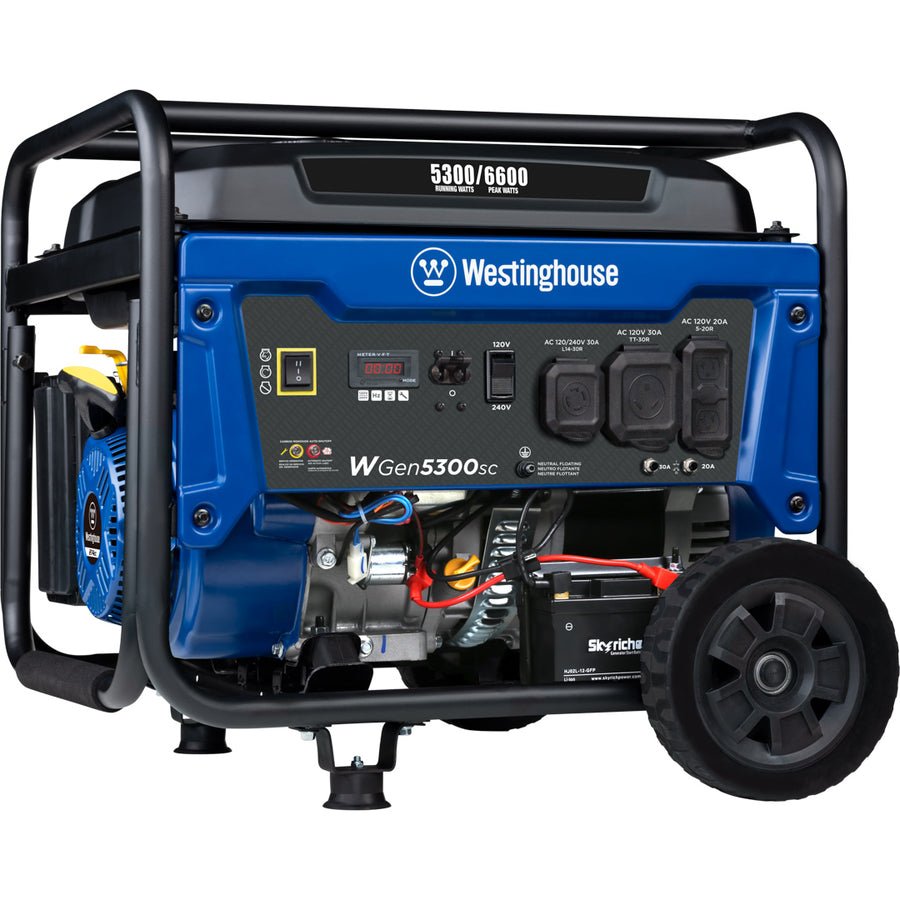

WGen5300sc Generator with CO Sensor

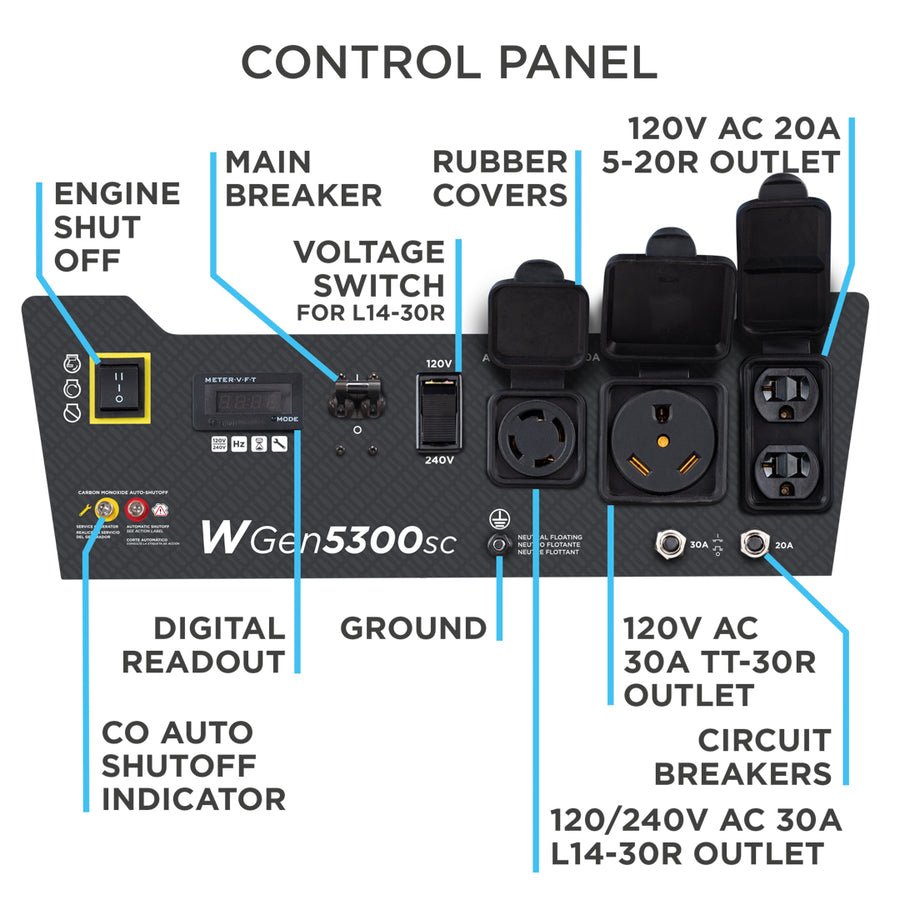

The Westinghouse WGen5300sc is a versatile solution for all your power needs from your home to your travel trailer when you’re looking for a dependable backup power supply. The WGen5300sc produces 6,600 peak watts and 5,300 running watts with a powerful 274cc 4-Stroke OHV Westinghouse Engine constructed for durability. Running for up to 14.5 hours on a 4.7 gal. (18L) tank of gas, it’s conveniently equipped with a built-in fuel gauge, automatic low oil shutdown, and electric start with manual choke. The L14-30R outlet is Transfer Switch Ready for total household power and eliminates the hassle for annoying extension cords or power strips. Combined with an RV Ready TT-30R outlet, all this generator needs is a one cord hookup to ensure your recreation vehicle or home is ready to go for air conditioners, refrigerators, sump pumps, and home necessities. The intuitive control panel includes the Digital Readout to share real-time updates on maintenance information, making it easy to care for the WGen5300sc with long life and lasting utility. Engineered into a compact hardened-steel frame with added roll bars, foam grip handle, and never-flat wheels, it lets you easily move this generator from storage to use. The WGen5300sc Portable Generator is complete with a 3-Year Limited Warranty and Lifetime Technical Support to ensure your confidence can be backed by our nationwide customer service and support network.

Perfect as a backup power source at home or portable power solution for RVs
6,600 peak watts and 5,300 running watts
Runs for up to 14.5-hours on a 4.7 Gal. fuel tank with built-in fuel gauge
Powered by a tough 274 cc 4-stroke OHV Westinghouse engine constructed with a durable cast iron sleeve
Electric start offers easy ignition with backup emergency recoil start
Weighing 133.8 lbs. with as low as 68 dBA operating volume
One 5-20R household duplex outlets, 1 Transfer Switch Ready L14-30R 120-Volt/240-Volt twist-lock and 1 RV Ready 120-Volt TT-30R receptacle with rubber outlet covers

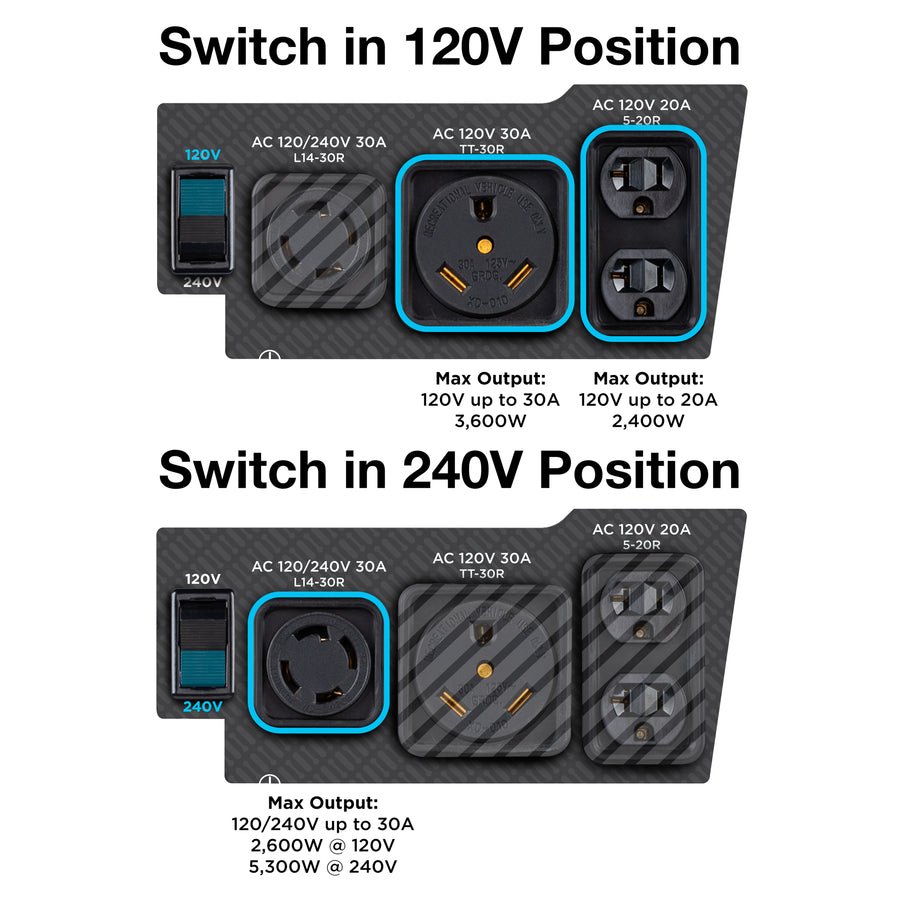

120-Volt/240-Volt selector switch allows for more flexible power draw per outlet
Digital Readout gives you real time updates with the voltage output, frequency and lifetime hours
Safe and convenient with automatic low oil and carbon monoxide (CO) shutdown, automatic voltage regulation, and overload protection

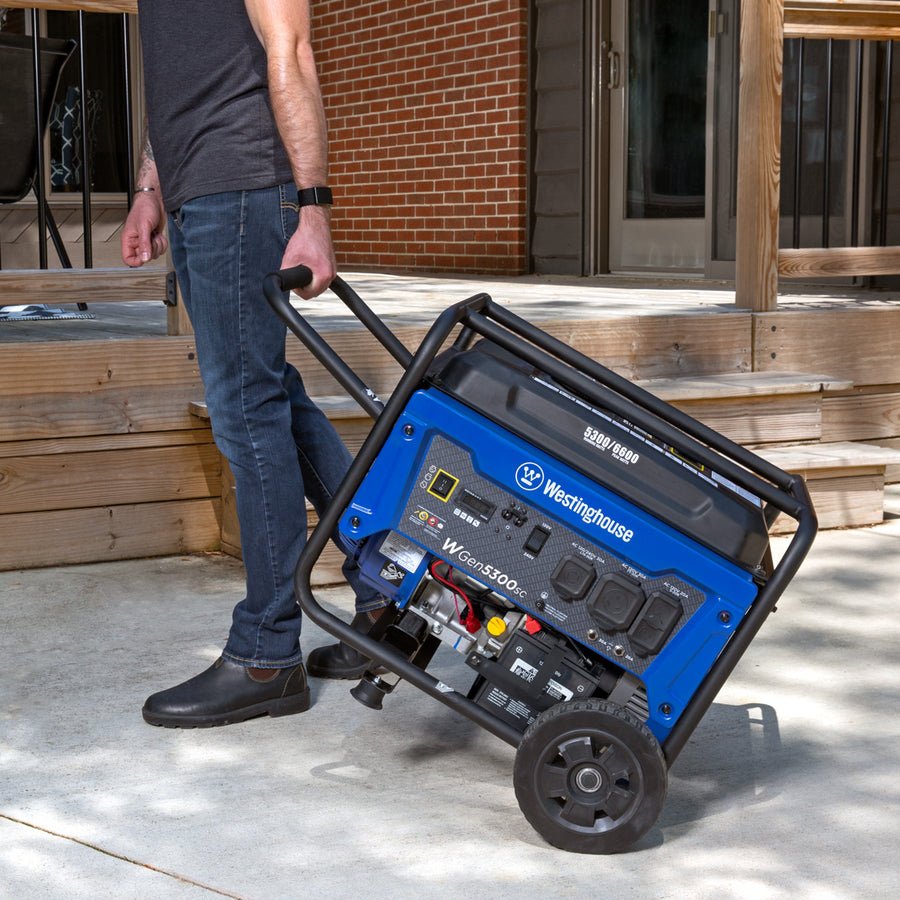

Compact hardened steel frame with foam grip handle and rugged never-flat wheels make portability easy
All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Gasoline Peak Watts
6600
Gasoline Running Watts
5300
Gasoline Peak Amps
27.5A – 240V
55A – 120V
Gasoline Running Amps
22A – 240V
44A – 120V
AC Voltage
120/240V
AC Frequency
60 Hz
Outlets
1 120V Duplex 5-20R
1 120/240V L14-30R
1 120V TT-30R
Total Harmonic Distortion
≤23%
GFCI Outlets
No
Outlet Covers
Yes
Transfer Switch Ready
Yes
RV Ready
Yes
Display Type
Digital Readout
Noise Level
68 dBA
Fuel Gauge
Yes
Fuel Tank Capacity
4.7 gal. (18 L)
Gasoline Run Time @ 25%
14.5 hrs.
Gasoline Run Time @ 50%
11 hrs.
Starter Type
Electric, Recoil
Choke Type
Manual
Engine Displacement
274cc
Engine Type
OHV 4 Stroke
Oil Capacity
20.3 oz. (0.6 qt.)
Engine Oil Type
10W-30
Automatic Low Oil Shutdown
Yes
Carbon Monoxide (CO) Sensor
Yes
Overload Protection
Yes
CARB Compliant
No
Grounding System
Floating Neutral
Battery Included
Yes
Included Accessories
Oil Bottle, Oil Funnel, Spark Plug Wrench
Warranty (Residential)
3 Year Limited
Warranty (Commercial)
1 Year Limited
Product Dimensions
23.5L x 25W x 21.5H in.
Dry Unit Weight
133.8 lb. (60.7 kg)
Packaging Dimensions
26.7L x 21.6W x 20.3H in.
Shipping Weight
147.7 lb. (70 kg)
Part Number
5325
UPC
850011336724
