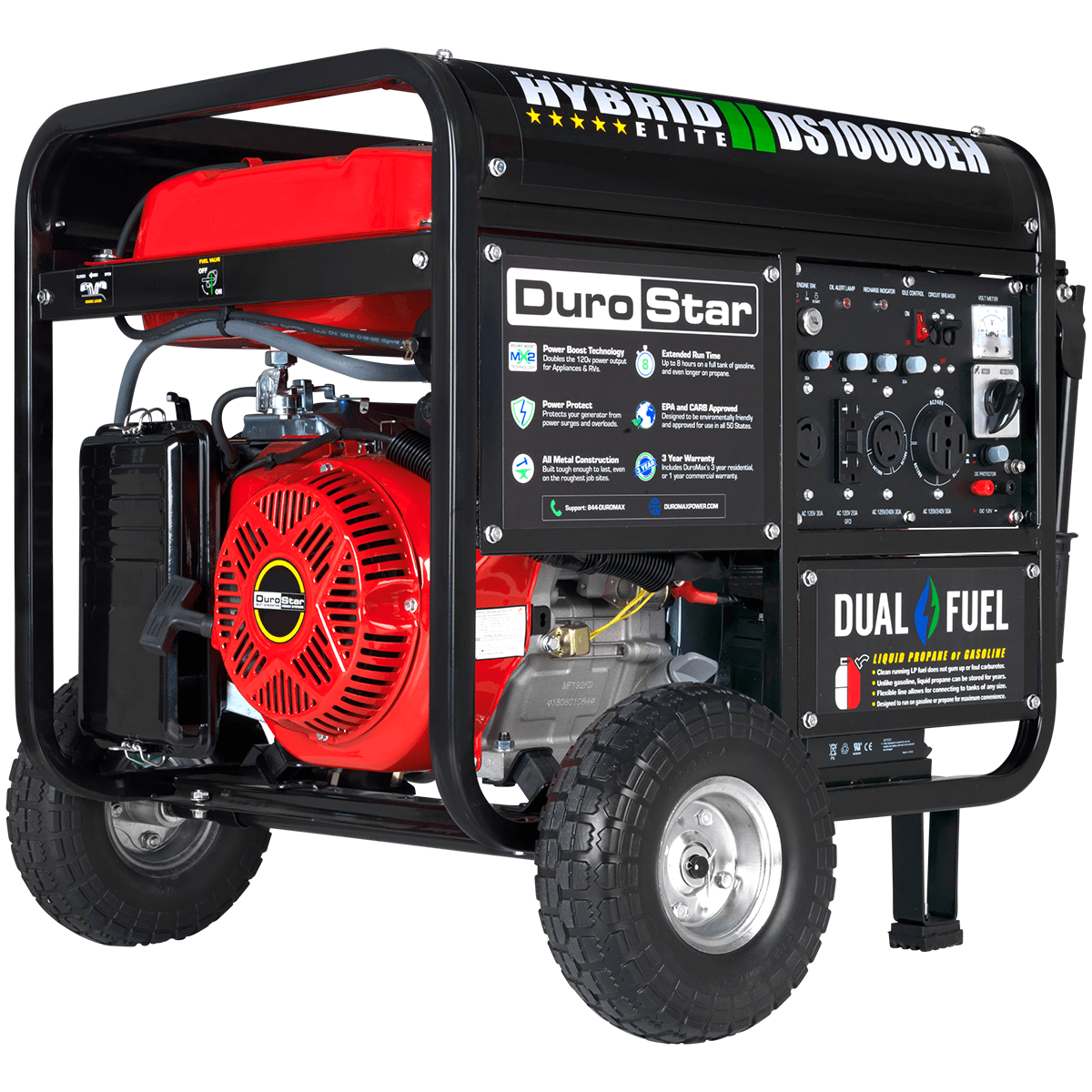

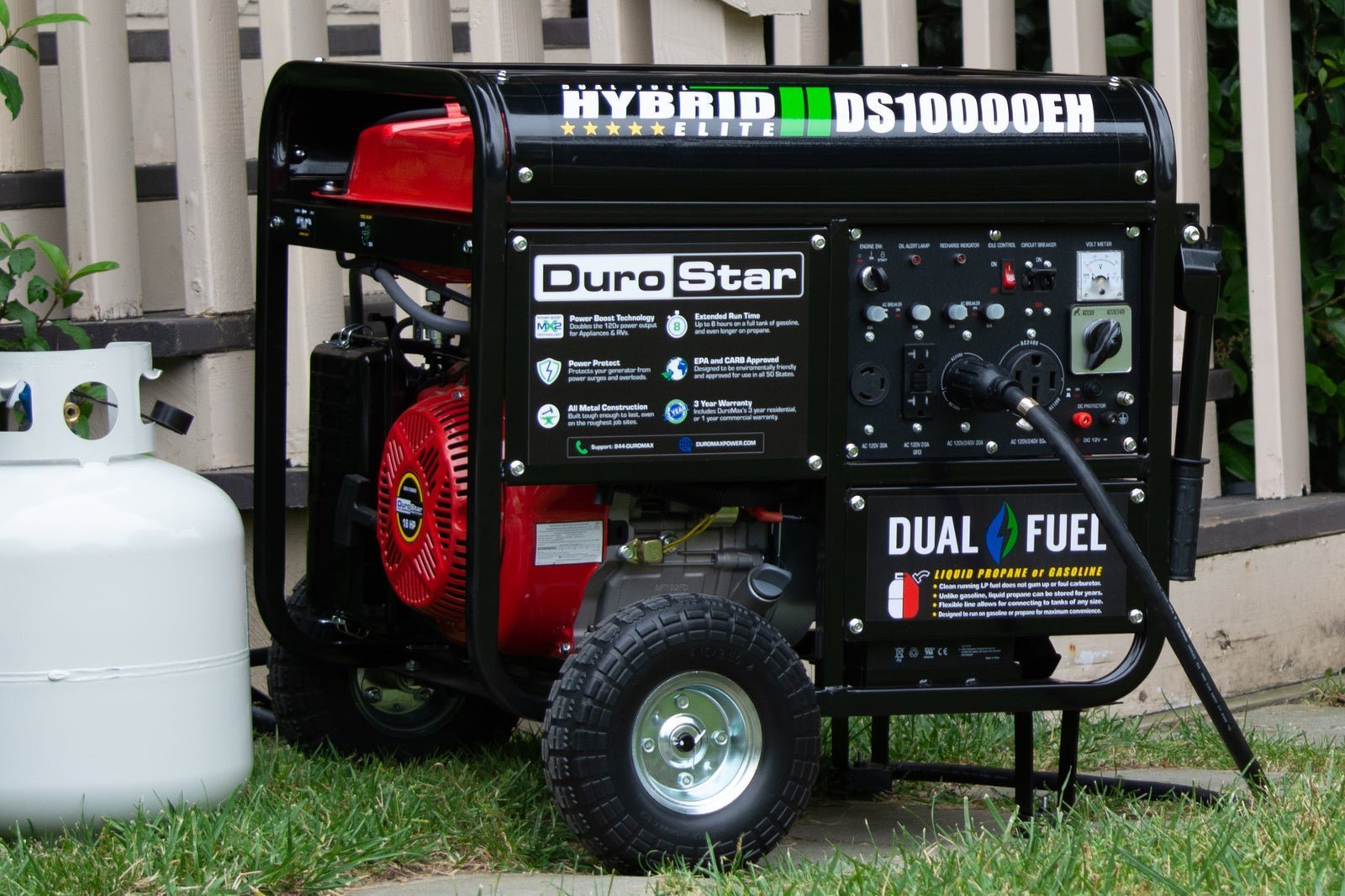

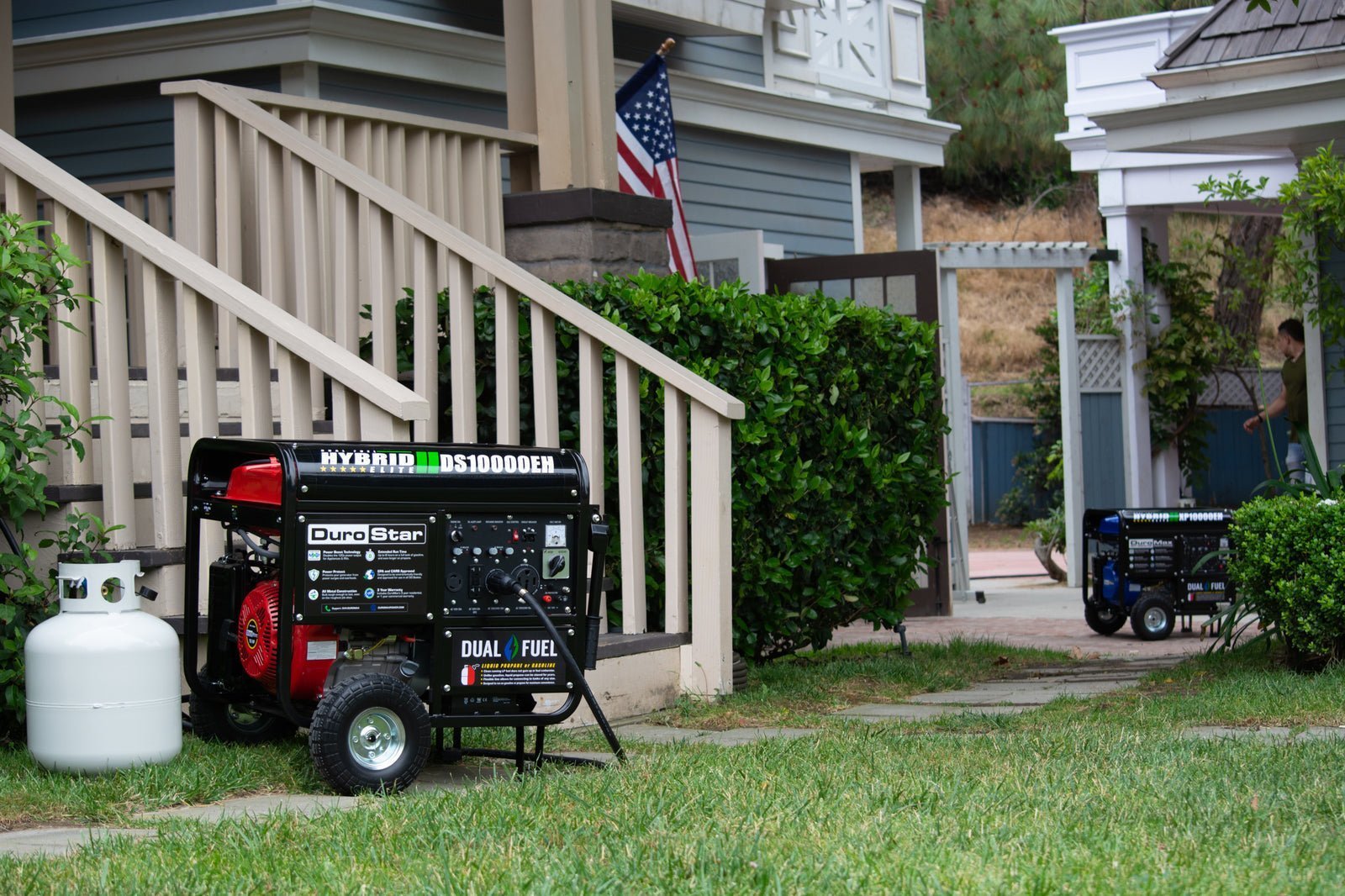

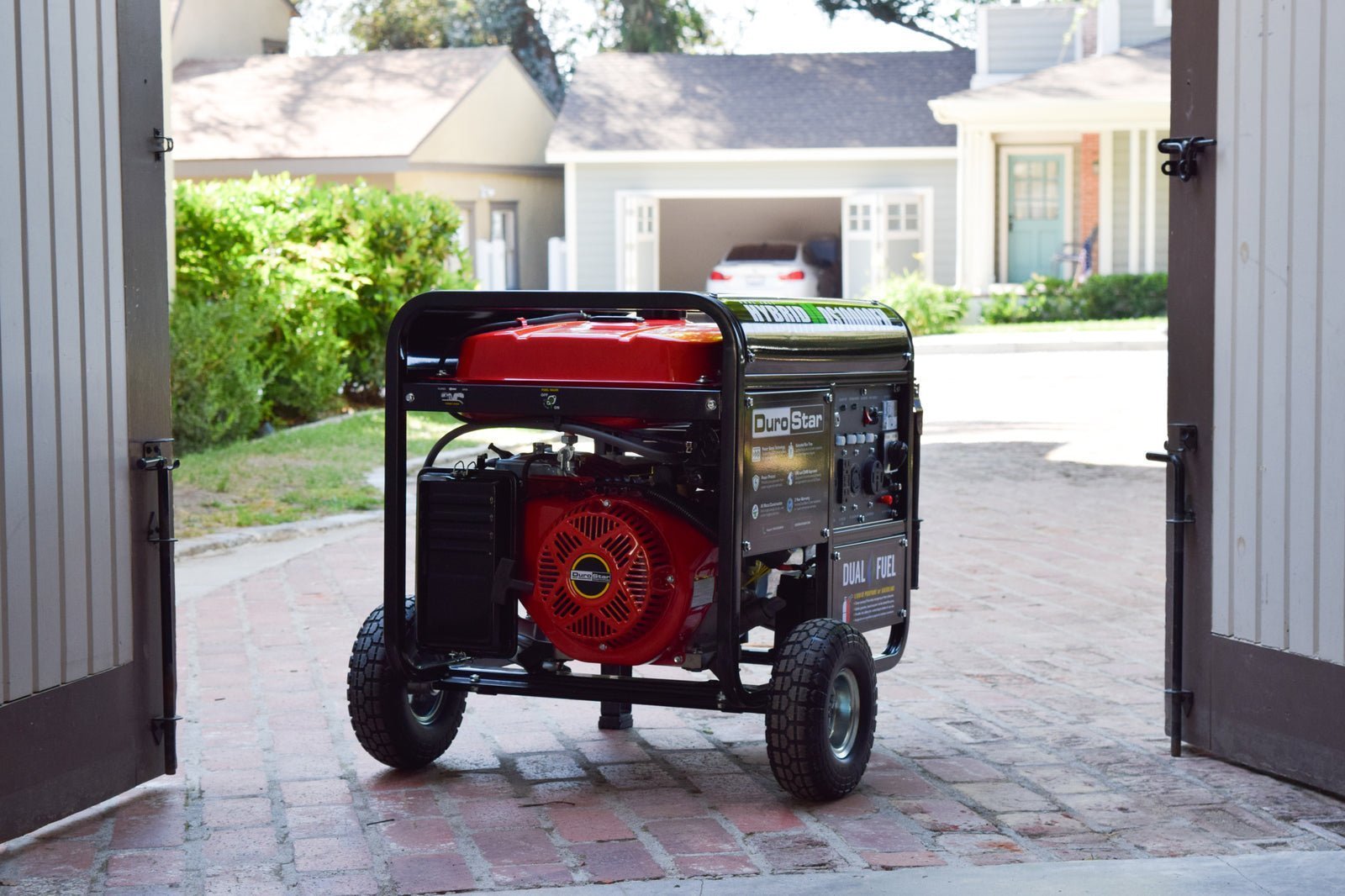

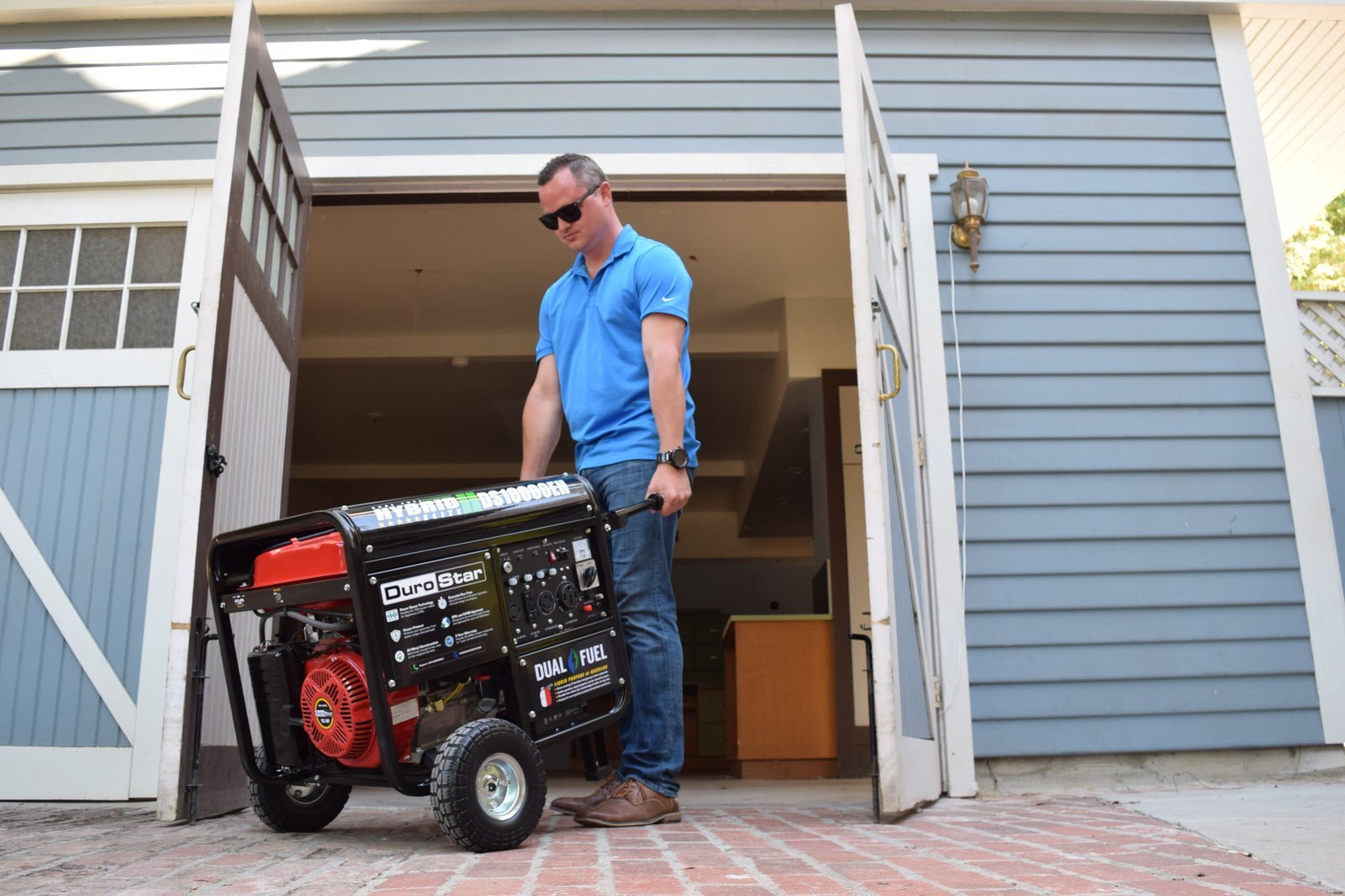

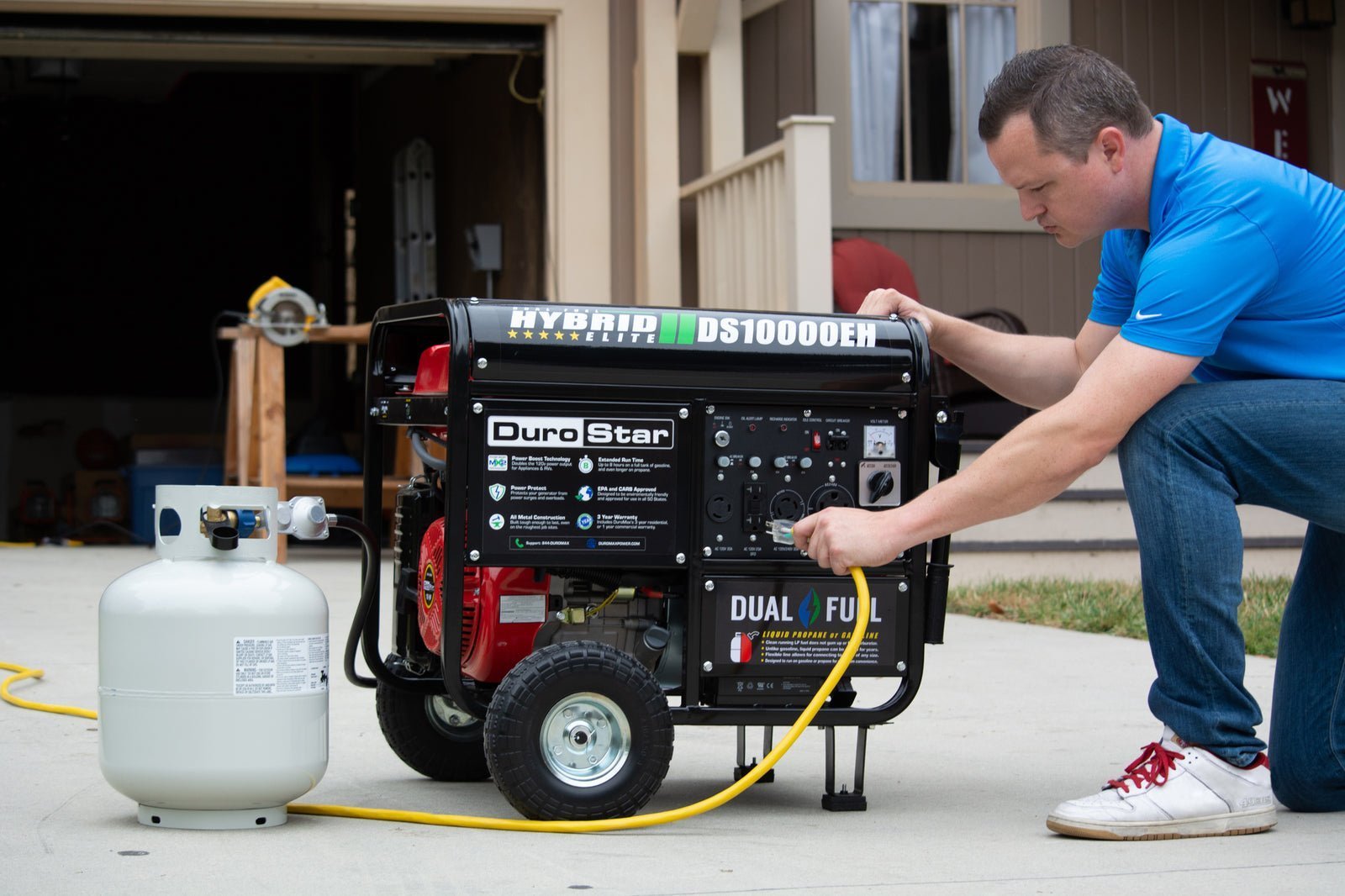

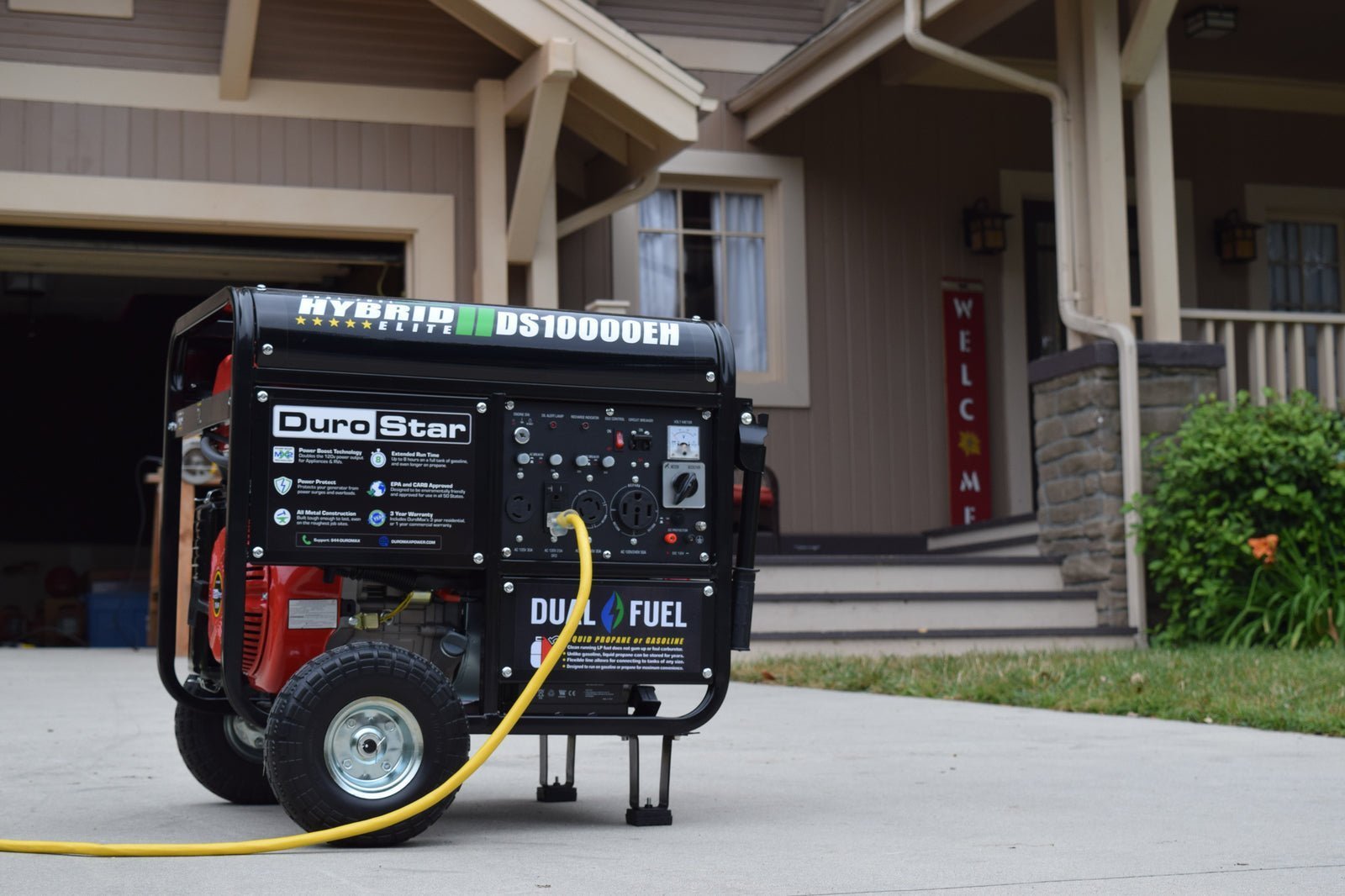

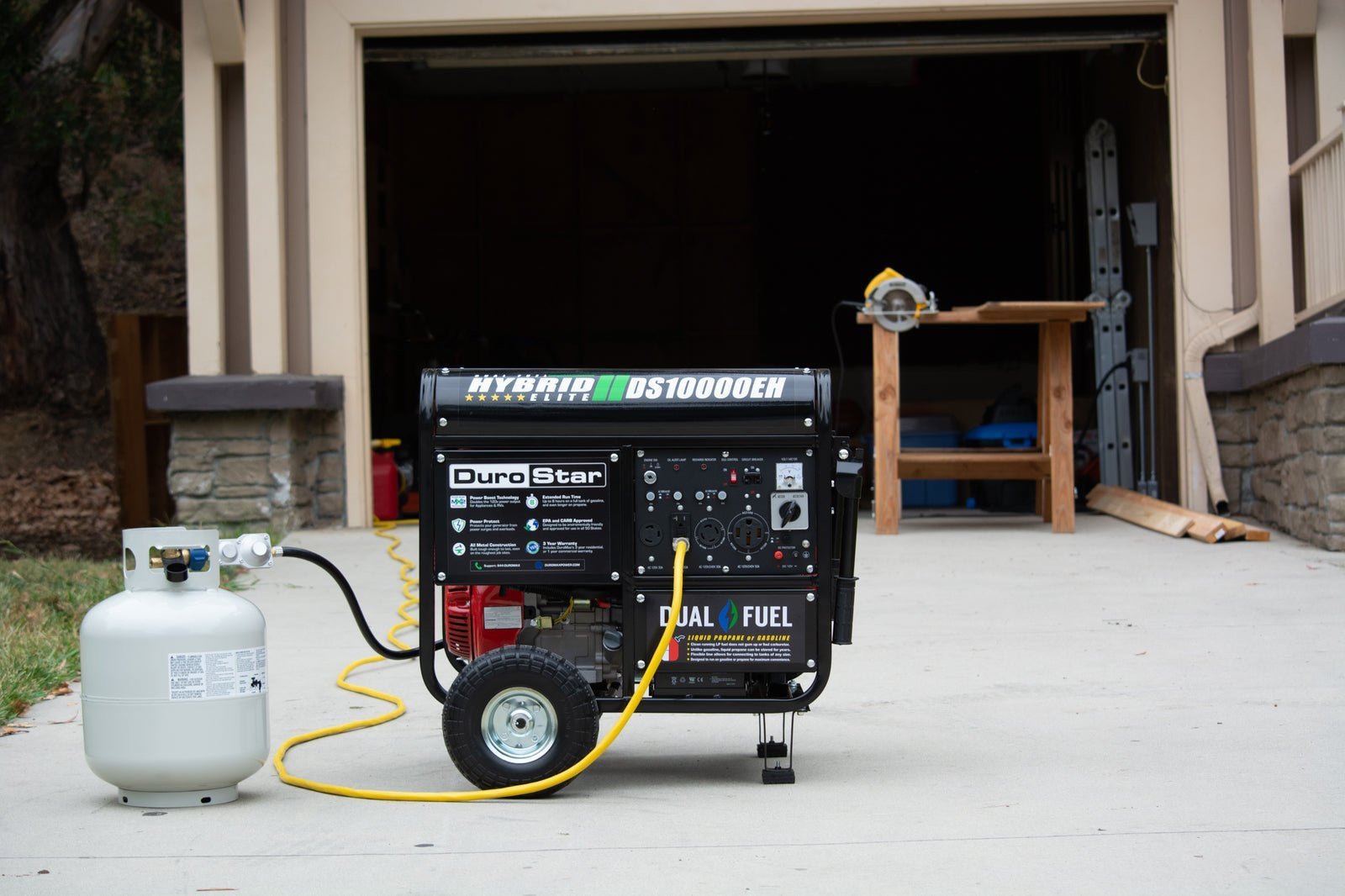

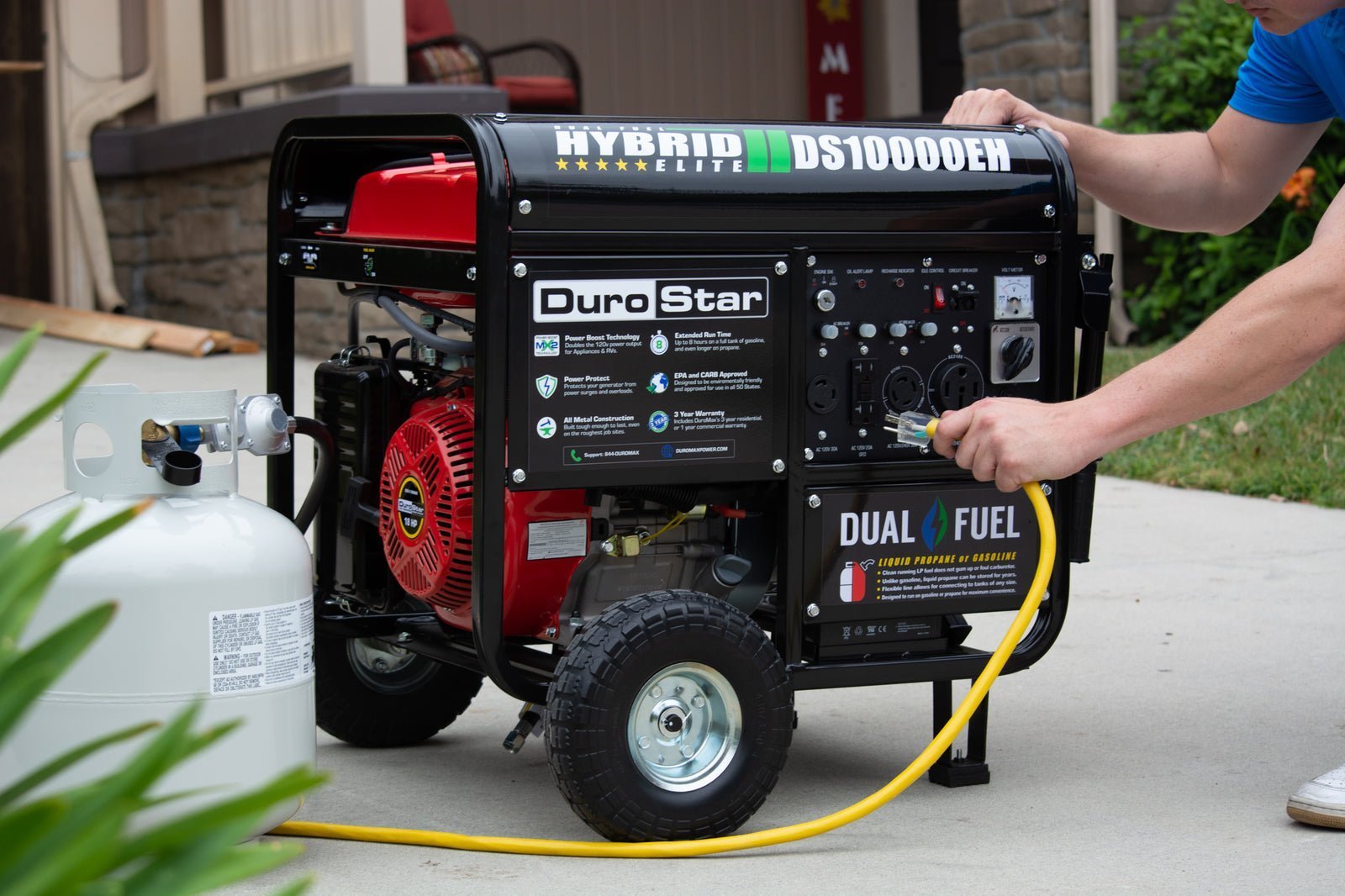

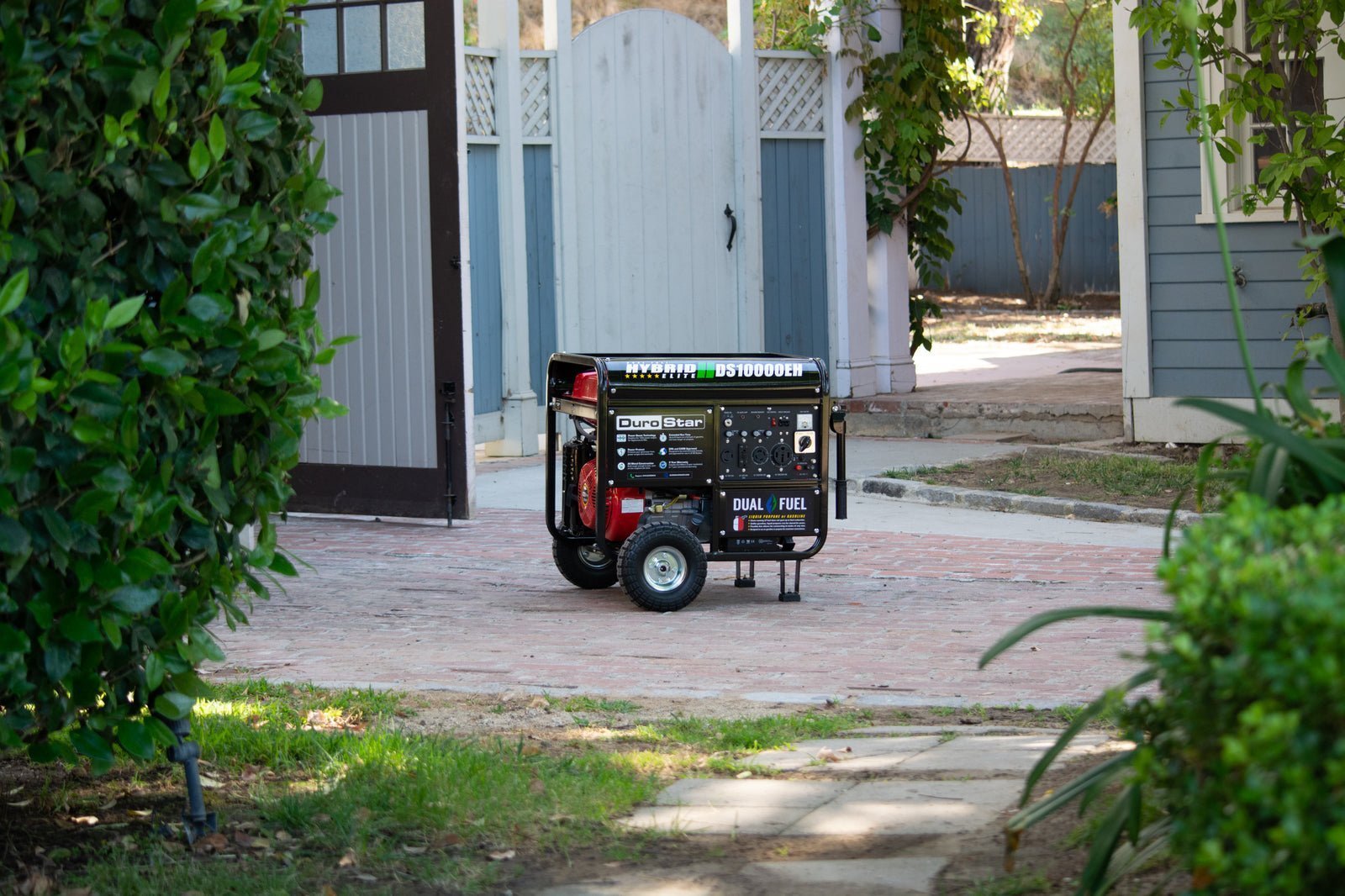

10,000 Watt Dual Fuel Portable Generator

DS10000EH Specifications

Gasoline

Peak Wattage
10,000

Running Wattage
8,000

Running Amperage at 120V
66.67

Running Amperage at 240V
33.33

Runtime at 25% Load
22

Runtime at 50% Load
10

Propane

Peak Wattage
9,500

Running Wattage
7,600

Running Amperage at 120V
63.33

Running Amperage at 240V
31.67

Runtime at 25% Load
17

Runtime at 50% Load
9

Engine & Emission Specifications

Engine Manufacturer
DuroStar Power Equipment

Engine Type
4-Stroke

Valve Type
OHV

Engine Cooling Type
Forced Air

Engine Size
439cc

Engine Speed
3600 RPM

Starting Type
Key Switch

Electric Start
Yes

Recoil Start
Yes

Idle Control
No Load Low Idle

Fuel Delivery System
Carburetor

Fuel Types
Gasoline and Propane

Oil Cooling Type
Splash

Recommended Oil
10W-30

Recommended Oil Types
Blended, Conventional, or Synthetic

Oil Capacity
37.2 fluid oz

Suggested Propane Tank Size
40 lbs. minimum

Automatic Low Oil Shutdown
Yes

Cast Iron Sleeve
Yes

Bearing Type
Stainless Steel Ball Bearing

EPA Certified
Yes

CARB Certified
Yes

50 State Emissions
Yes

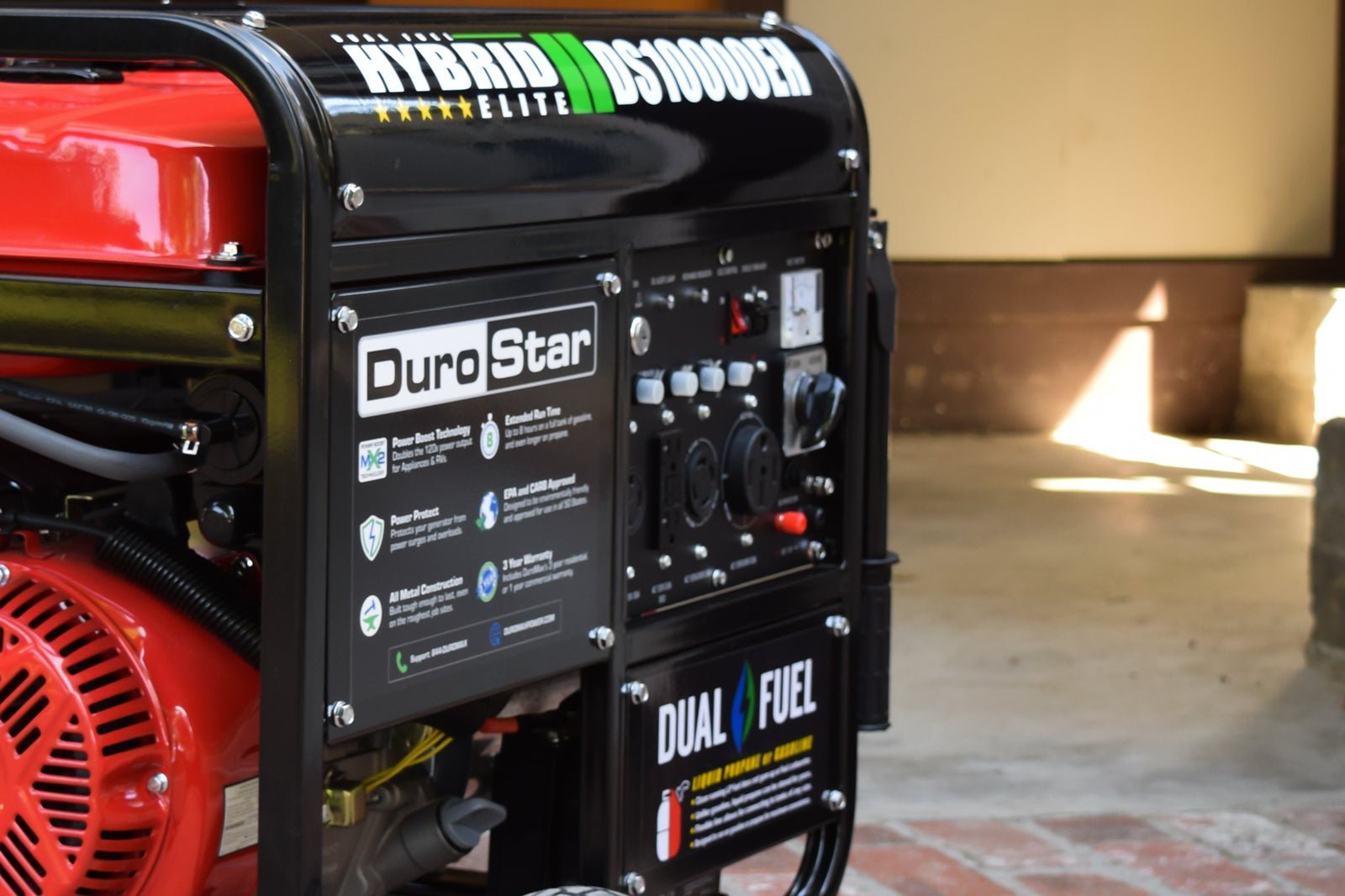

Panel Specifications

GFCI Outlets
Yes

Volt Meter
Analog

5-20R
2

L5-30R
1

L14-30R
1

14-50R
1

12V Post
1

Generator Specifications

Manufacturer
DuroStar Power Equipment

Part #
DS10000EH

Voltage
120/240 Volts

Frequency
60 Hertz

GFCI Outlets
Yes

Propane Hose & Regulator
Included

Winding Material
100% Copper Windings

Automatic Voltage Regulator
Yes

Battery Type
12V SLA

Battery Included
Yes

RV Ready
Yes

Home Backup Ready
Yes

Fuel Tank Capacity Gasoline
8.3 Gallons

Fuel Gauge
Yes

All Metal Construction
Yes

Product Dimensions
29″-Long x 30″-Wide x 26″-High

Product Dry Weight
220-lbs

Product Weight
236-lbs

Volume (db)
72 dB

UPC
811640014421

Warranty
3 Year

Wheel & Handle Kit
Included

Wheel Type
Metal Hub

Wheel Diameter
10-Inches

What’s in the Box?
DS10000EH Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, DC Charging Cables, and Owner’s Manual
