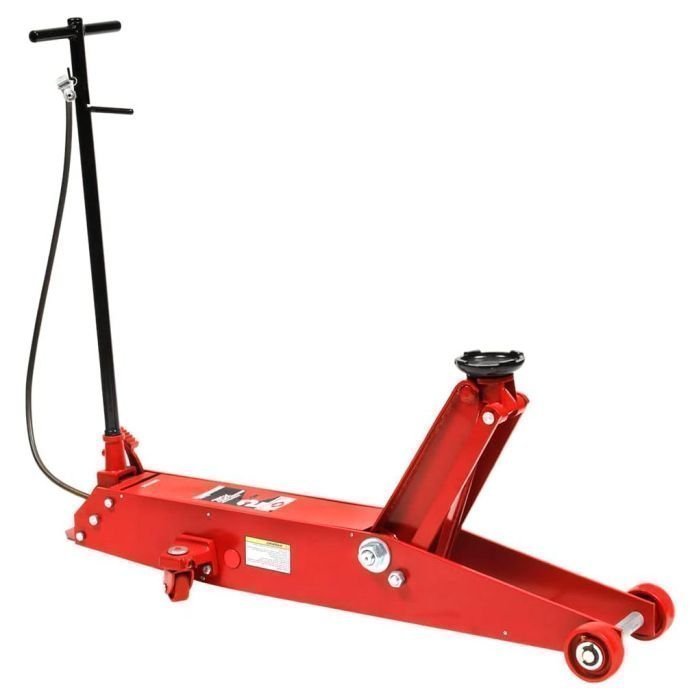

AFF 5-Ton Long Chassis Air Assist Service Jack

The American Forge & Foundry 5-Ton Long Chassis Air Assist Service Jack is made for those situations where you don’t want to take a chance on one of those cheap, bargain jacks. With sturdy steel frame construction and commercial-quality components, this model is perfect for truck and bus fleets as well as heavy construction equipment. With a low saddle height, it can reach under the frame of most vehicles. These heavy-duty jacks meet ANSI standards for commercial quality truck jacks and are extremely heavy-duty at surprisingly reasonable prices. Your auto garage will benefit from the long frame and premium quality components. Double-sealed hydraulics means this product is ready to go with no concerns about leaking cylinders. Smooth-rolling casters ensure graceful moving throughout your auto shop. The Air Assist pump operates at 115-200 PSI (7.8 CFM).
Features

Operates At 115-200 PSI (7.8 CFM)
Heavy Duty Pumps, Rams, And Cylinders Are Precision Machined And Inspected To Ensure Long Service Life And Superior Performance
Super Long 56″ Body For Easier Lifting Of Vehicles With Long Overhangs
Foot Operated Pump For Quick Lifting Efficiency
Handle Mounted Locking Control Lever Has 3 Positions For Better Versatility In Under Car Positioning
Automatic Overload Safety Valves For Added Safety
Full Rotating Swivel Casters Allow For Easy Maneuvering In Small Shop Situations
Control Lever Is Mounted On The Handle To Lock Handle In 1 Of 3 Possible Positions
Extra Wide Frame For Maximum Stability
Can Be Operated When Shop Air Is Not Available

Specifications

Capacity: 5 Tons
Low Height: 6″
High Height: 22-1/2″
Frame Length: 56″
Front Width: 11-1/2″
Rear Width: 15″
Shipping Weight: 273 lbs.
Warranty: (3) Year Limited
