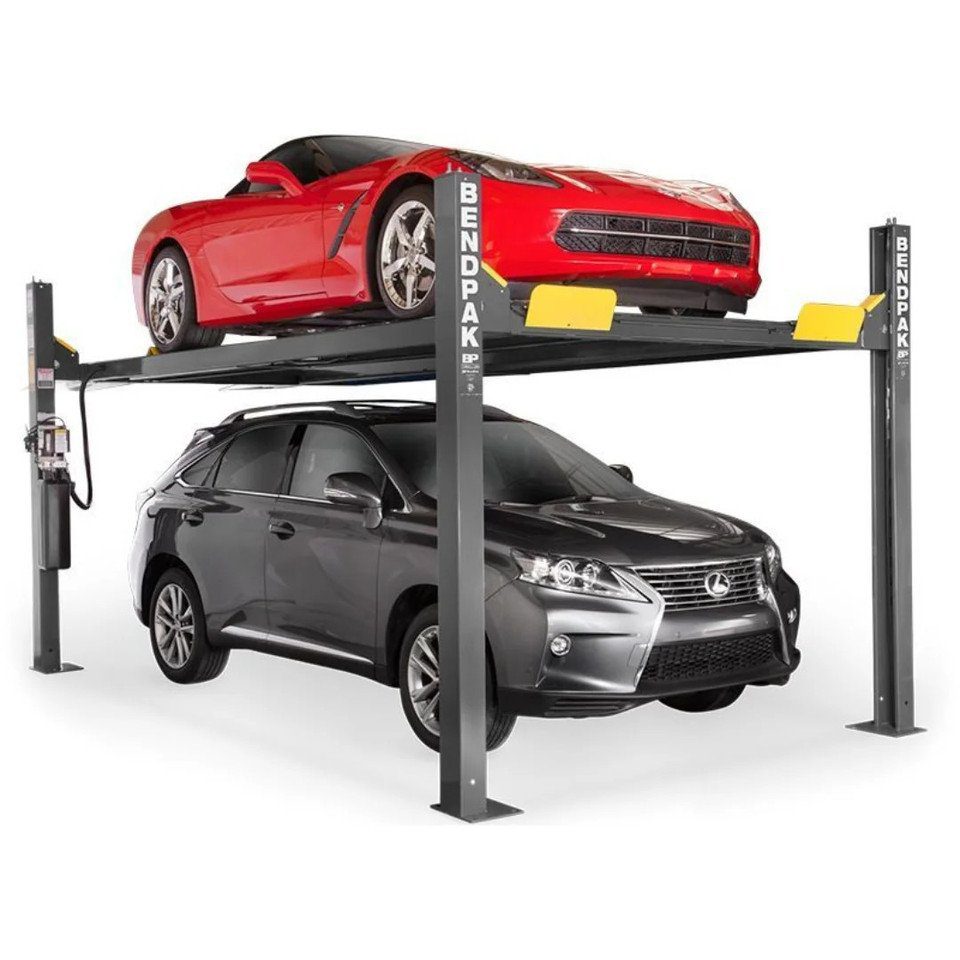

Bendpak HD-9XW 9,000 Lbs Standard Width Extra-Tall 4-Post Lift

We’re proud to be able to say the HD-9XW four-post lift is one of our most versatile and user-friendly lifts for serious DIY’ers and shop owners. The extra ceiling clearance you need means this car lift is generally the property of daily wrenchers with dedicated service garages, and the standard-size width is ideal for most normal garage environments.
When your garage isn’t cramped for space, you have more lifting options. The HD-9XW is made for the garage with a generous ceiling height, so high-rise vehicles can park on the lower level. Unlike our narrow-width HD-9ST four-post lift, this model comfortably holds wide-body trucks and SUVs without you having to worry about scratching up the mirrors or doors. With 82” of rise out of the runways, you can lift those heavy machines higher, leaving more room for taller mechanics to operate underneath. There’s also more room to park high-clearance trucks and SUVs. This eliminates the disappointment of buying a new lift and discovering your taller vehicle won’t even fit underneath.
The only way to get more width than this is to check out BendPak’s HD-9SW, a super-wide lift. We’re proud to be able to say the HD-9XW is arguably one of our most versatile and user-friendly lifts for serious DIY’ers and shop owners. The extra ceiling clearance you need means this car lift is generally the found as the property of daily wrenchers with dedicated service garages.
Features
9,000-lb. maximum lifting capacity.
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493.
Freestanding design.
High-rise.

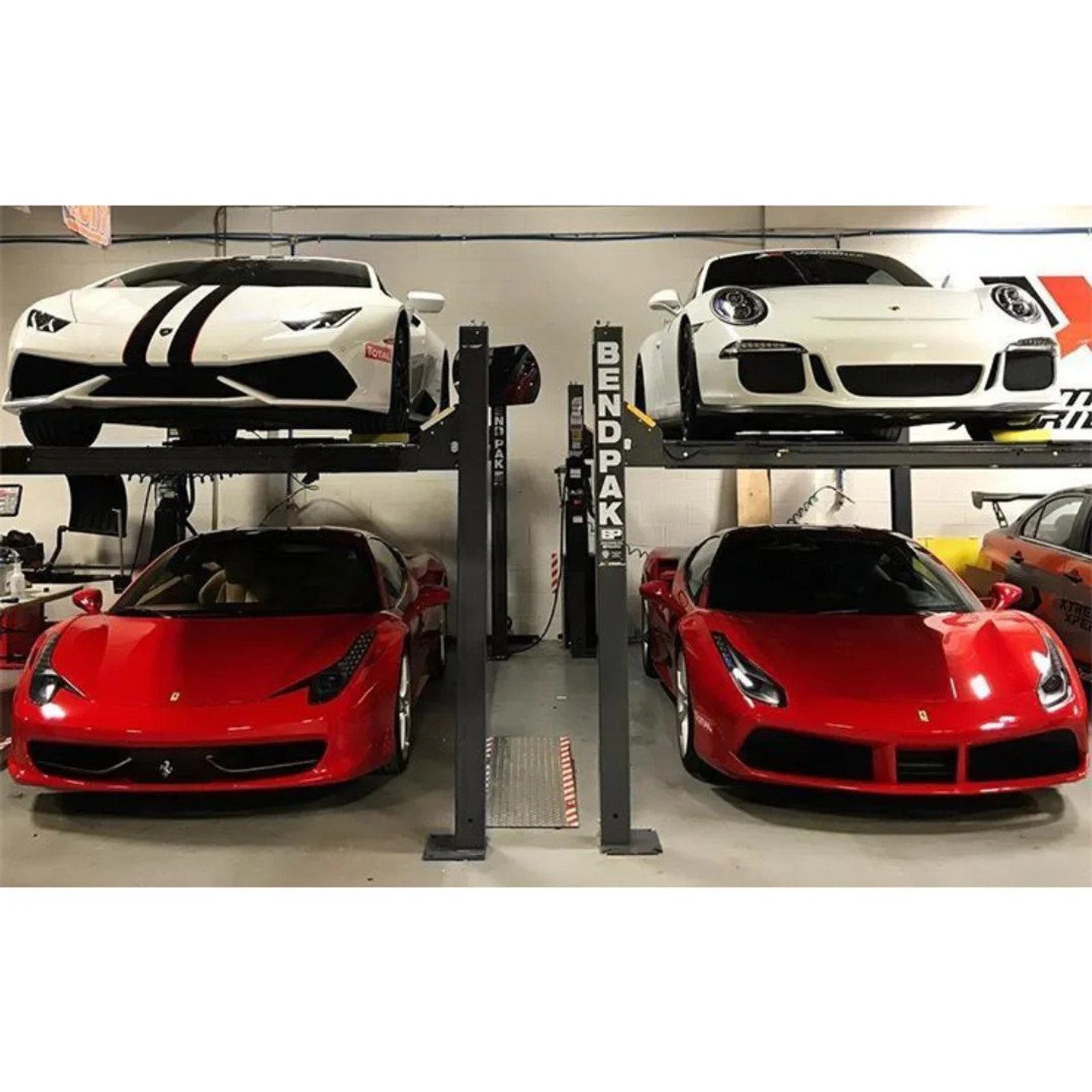

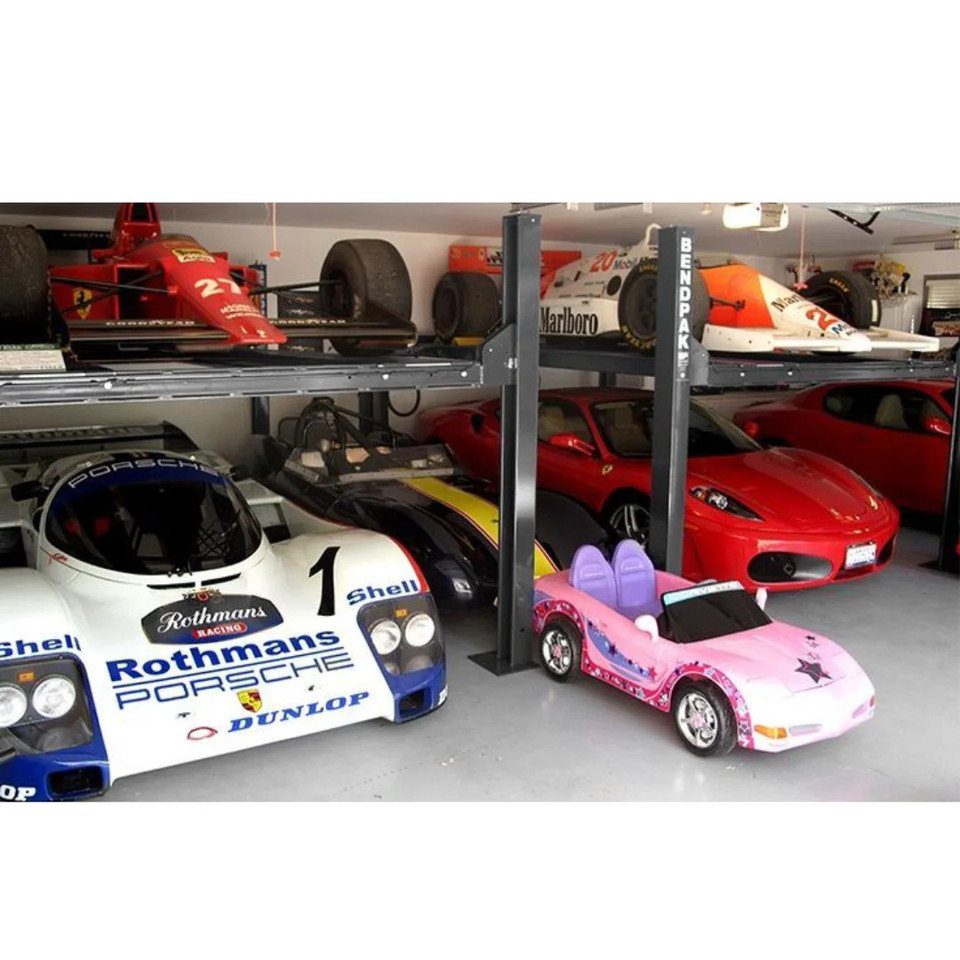

Perfect for parking, storage and service.
Runways accommodate narrow and standard vehicles.
Runways include rail-kit for optional accessories.
Electric-hydraulic power system.
Single hydraulic cylinder mounted underneath runway.
Fully enclosed lifting cables, safety locks and sheaves.
Internal anti-sway slider blocks in each column.
Oversized self-lubricating cable rollers.

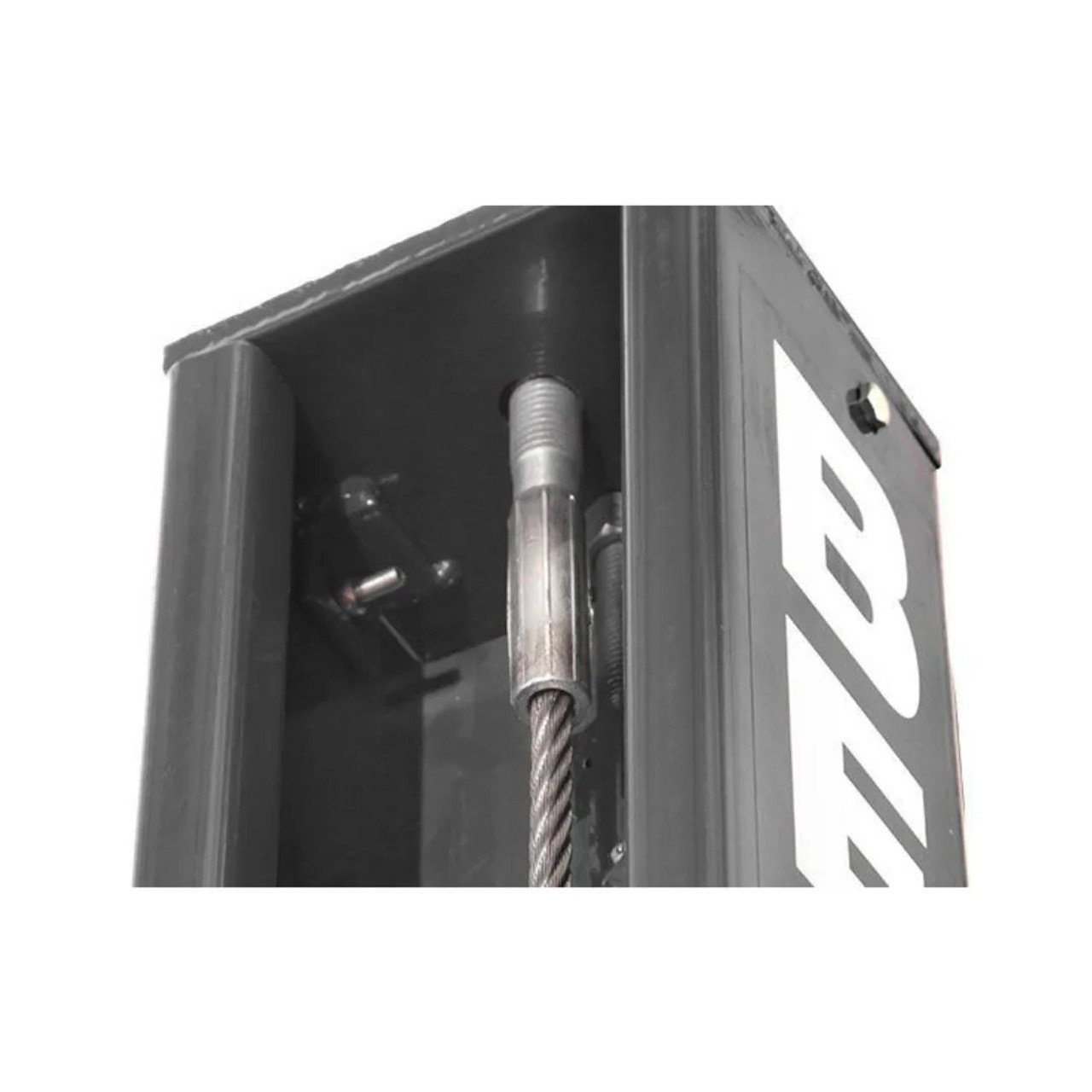

Features heavy-duty 3/8″ aircraft cable.
Rugged 1.25″ roller axles.
Multi-position safety locks in each column.
Adjustable lock ladders.
Runways feature non-skid surface.
Push-button pneumatic safety release.
Independent backup slack-cable safety latches.
Customizable power unit location.

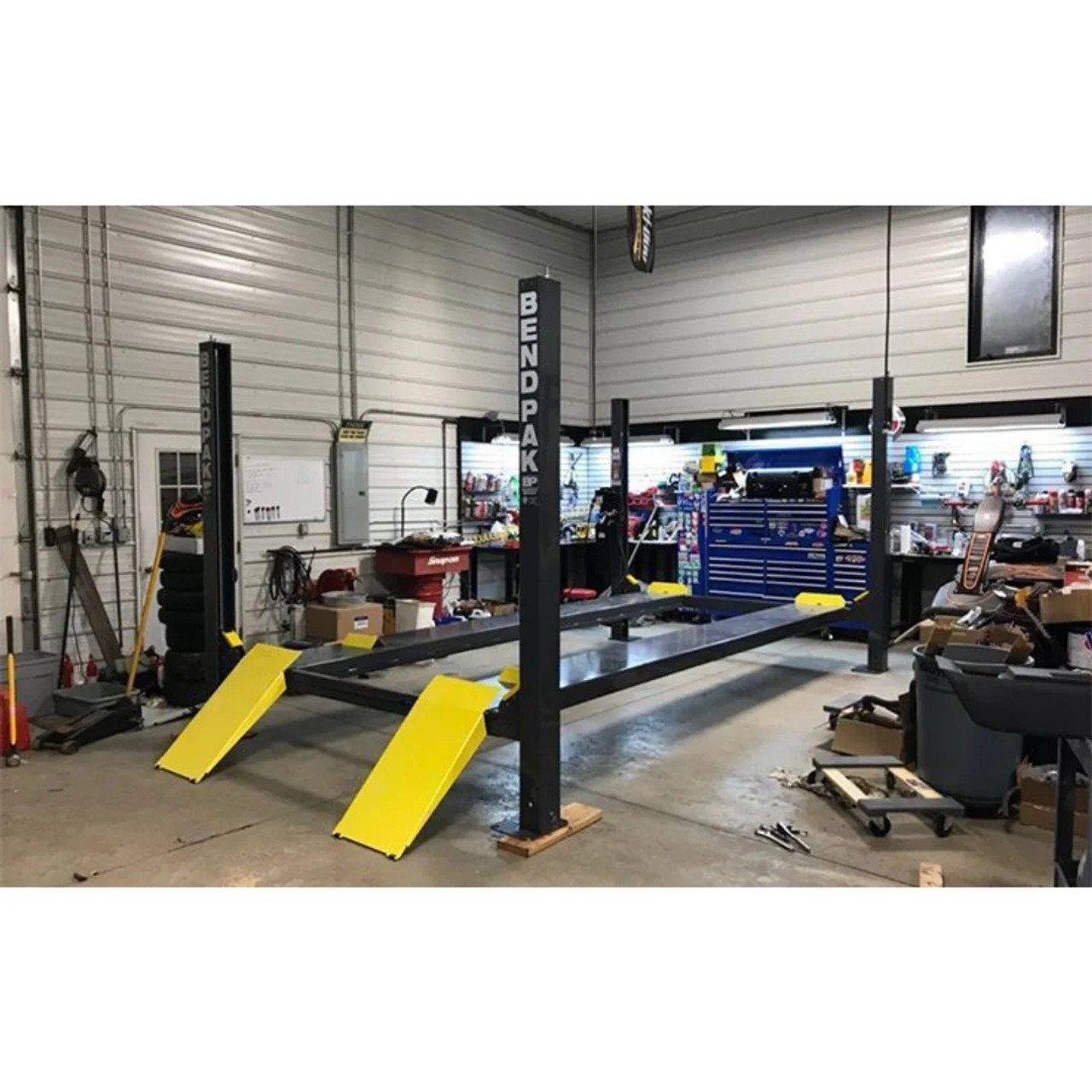

Removable approach ramps for additional drive-under clearance.
Longer approach ramps for low-ground clearance vehicles available.
Optional drive-thru ramps available.
Optional drip trays available.

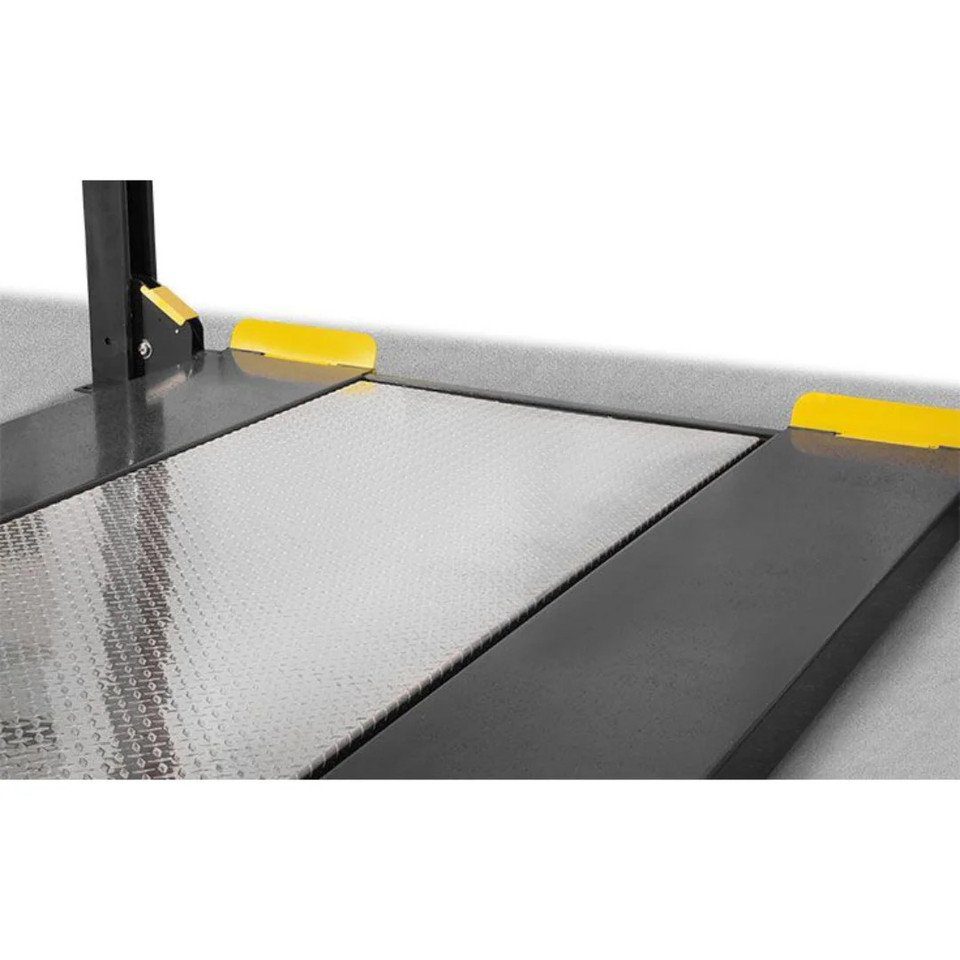

Optional solid deck available to increase storage capacity.
Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45).
ETL Approved.
Specifications
 Model
 HD-9XW
 Lifting capacity
 9,000 lbs. / 4,082 kg
 Max capacity at Front Axle
 4,500 lbs. / 2,041 kg
 Max capacity at Rear Axle
 4,500 lbs. / 2,041 kg
 a Min. runway height
 4.75 in. / 121 mm
 b Maximum rise
 82.165 in. / 2,087 mm
 c Maximum lifting height
 87 in. / 2,208 mm
 d Overall width ± .125 in. / 3 mm
 110.25 in. / 2,800 mm
 e Outside length
 198 in. / 5,028 mm
 f Overall length
 224.50 in. / 5,703 mm
 g Height of post
 100 in. / 2,537 mm
 h Distance between posts
 100.25 in. / 2,546 mm
 i Drive-thru clearance
 86.65 in. / 2,201 mm
 j Runway width
 19 in. / 482 mm
 k Runway length
 182.25 in. / 4,629 mm
 l Width between runways
 35 in. – 41.25 in. / 887 – 1,045 mm
 m Runway centerline
 57 in. – 61 in. / 1,445 – 1,603 mm
 n Outside edge of runways
 75.75 in. – 82 in. /1,927 – 2,085 mm
 Max. Load Operating Pressure
 2,460 ps
 Min. wheelbase @ rated cap. (1)
 135 in. / 3,429 mm
 Min. wheelbase @ 75 capacity (1)
 115 in. / 2,921 mm
 Min. wheelbase @ 50 capacity (1)
 95 in. / 2,413 mm
 Min. wheelbase @ 25 capacity (1)
 80 in. / 2,032 mm
 Locking positions
 17 spaced every 4 in. / 102 mm
 Motor
 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)

1. The Lift supports less weight than its rated capacity if the Vehicle’s wheelbase is shorter; this is because the wheels are closer to the middle of the Runways, where there is less support. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85 in. is 50 percent of the Lift’s rated capacity (or 4,500 lbs. when the rated capacity is 9,000 lbs.).
