Champion 22-kW aXis Home Standby Generator with 200-Amp Whole House Switch (US & CA)

Description
Description

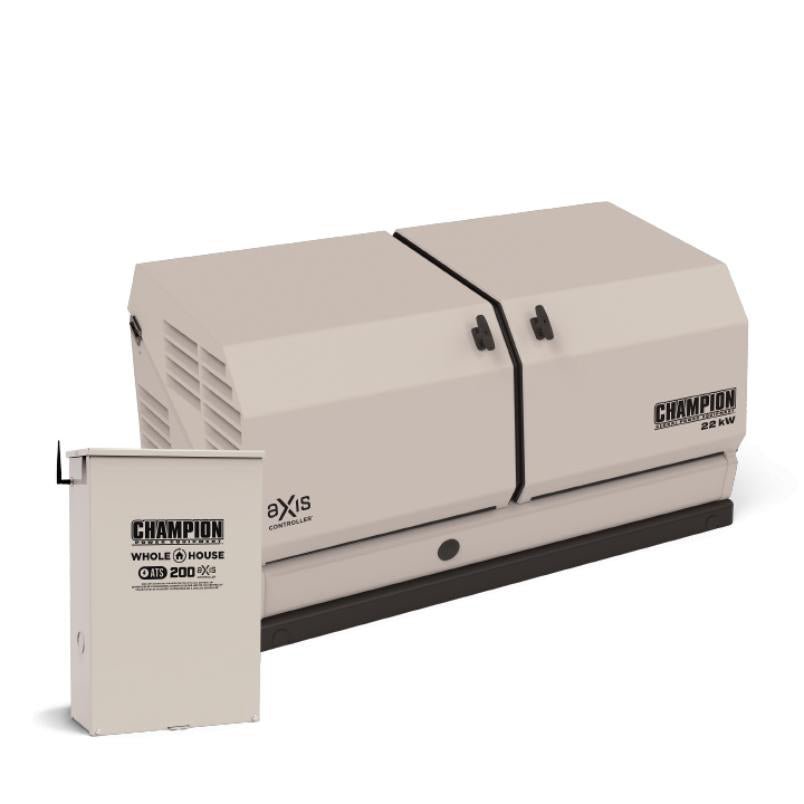

The Champion Power Equipment 100304-200A Home Standby Generator System includes 22 kW aXis Home Standby Generator and 200A aXis ATS Whole House Automatic Transfer Switch. Equipped with aXis technology for reduced costs, increases efficiency, and peace of mind while ensuring security and convenience for your family during an emergency. Enjoy totally automatic, seamless power to your home during an outage.
Champion aXis 22 kW generator features aXis Controller™ with 4-inch color display and Power Line Carrier technology, which uses your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time on installation.
With aXis Wi-Fi Direct your installer can use a tablet or cell phone to program your generator meaning less hassle, faster setup, and lower cost.
The Whole House automatic transfer switch backs up your home’s 200-amp distribution panel and has the ability to manage your high-demand appliances by using our aXis Load Management Modules model 100868 (sold separately). With the ability to add unlimited modules, never worry that you’ll overload your HSB system since aXis monitors your generator output and only allows operation of your high-demand appliance when there’s enough generator power available.
The innovative advanced airflow design stands out from the competition and allows your HSB to operate at cooler temperatures which extends the life of your engine. Your HSB is up to 20% more fuel efficient than leading competitors with 3.6 gal/hr using propane and 270.2 ft3/hr using natural gas at rated load.
Be confident your HSB will hold up to any weather thanks to the aluminum-zinc coated steel enclosure, offering better structural rigidity with the oxidation resistance of an all-aluminum enclosure, plus the gullwing opening allows for easy service and maintenance access.
The starting system operates in temperatures ranging from -22° F to 104° F, never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when the power goes out, and returns to standby when power is restored.
The 999cc V-Twin Champion engine provides 22-kilowatts of continuous power on propane and 19.8-kilowatts on natural gas. This 22 kW-rated unit produces 91.7 amps at 240 volts on propane and 82.5 amps at 240 volts on natural gas.
The residential-friendly 67 dBA is a little louder than normal conversation.
The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.
This generator is available for all 50 states. Buy with confidence – Champion Support will back your purchase with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.
What’s included
Battery Jumper Wire
Gas Inlet Flex Hose
Gas Inlet Hose
Keys for Door Lock
Master Mixer Assembly
Powerful
Up to 20% more fuel efficient than leading competitors, this 22-kilowatt generator provides 22,000 watts of continuous power on propane and 19,800 watts on natural gas, with no refueling, no manual operation, and no extension cords needed
Efficient
With less wiring and lower installation costs thanks to our Power Line Carrier technology, you’ll save time and money installing your new HSB, easily manage your high-demand appliances with aXis technology, plus advanced airflow design extends engine life
Quiet Operation
Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 67 dBA noise level and performs self-diagnostic tests
Reliable
24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with aluminum-zinc coated steel for weatherproofing and oxidation-resistance
Champion Support
Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts
Specs
Specs
Propane Rated Watts
22000W
Natural Gas Rated Watts
19800W
Propane Rated Amps at 120V
183.4A
Propane Rated Amps at 240V
91.7A
Natural Gas Rated Amps at 120V
165A
Natural Gas Rated Amps at 240V
82.5A
Rated Volts
120/240
Rated Frequency
60Hz
Phase
Single
Propane Fuel Consumption at 1/2 Load
2  gal/h
Propane Fuel Consumption at Full load
3.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load
173.4 ft3/h
Natural Gas Fuel Consumption at Full Load
270.2 ft3/h
Main Line Circuit Breaker
100A
Starting System
Automatic 24V
Operational Volume
67 dBA
Cooling System
Air Cooled
AC Ton Rating
5T
Generator Enclosure
Aluminum-Zinc Coated Steel
Generator Mounting Pad
Composite
Engine Brand
Champion
Engine Size
999cc
Engine Type
4-stroke V-Twin
Engine Speed
3600
Fuel Type
Propane (LPG), Natural Gas (NG)
Engine Oil Type
Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity
3 qt.
Engine Oil Included
Yes
Low Oil Shut-Off
Yes
ETL Listing
cETLus
EPA Certified
Yes
Switch Type
Whole House
Switch Amps
200A
Switch Volts
120/240
Switch Circuits
Whole House
Switch Poles
2
Response Time
Adjustable (0.5-30 sec.)
Load Management
Yes
Service Entry Rated
Yes
Switch Enclosure
NEMA 3R
Dimensions
Length
54.0 in.
Width
30.3 in.
Height
43.9 in.
Weight
632.5 lb.
Downloads
Downloads
22kW aXis FactSheet

Operator’s Manual
Operator’s Manual for Generator (Model 100304) in English
Operator’s Manual for Generator (Model 100304) in Español
Operator’s Manual for Generator (Model 100304) in Français

Installation Manual
Product
Download
Transfer Switch (aXis Models)
Installation Manual for Transfer Switch (ATS) in English
Installation Manual for Transfer Switch (ATS) in Español
Installation Manual for Transfer Switch (ATS) in Français
Generator (aXis Models)
Installation Manual for Generator (aXis Models 100515 & 100304) English
Installation Manual for Generator (aXis Models 100515 & 100304) Español
Installation Manual for Generator (aXis Models 100515 & 100304) Français
Parts Information
Product
Download
Generator (Model 100304)
Parts Information for Generator (Model 100304) in English
Parts Information for Generator (Model 100304) in Español
Parts Information for Generator (Model 100304) in Français
Transfer Switch (Model 102006)
Parts Information for Transfer Switch (Model 102006) English
Parts Information for Transfer Switch (Model 102006) Español
Parts Information for Transfer Switch (Model 102007) Français
