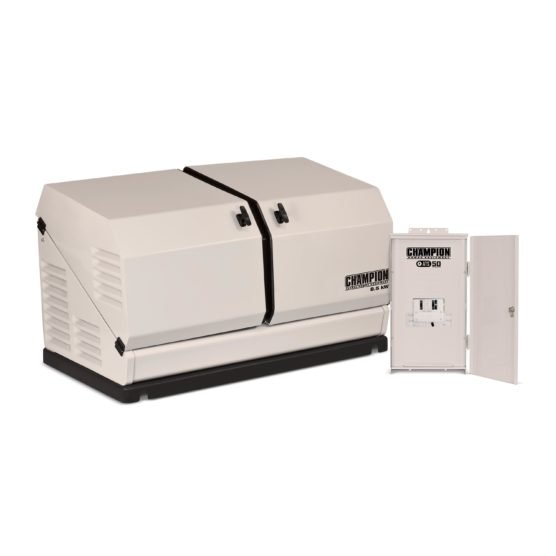

The Champion Power Equipment 100177 8.5-kW Home Standby Generator with an ATS50 Outdoor-Rated Automatic Transfer Switch is The Simple Solution™ to a power outage. Enjoy peace of mind while ensuring security and convenience for your family during an emergency.
The generator starts automatically when the power goes out and returns to standby when power is restored. The 24-volt starting system operates in temperatures ranging from -22° F to 104° F with no warming kit necessary.
You’ll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling. This unit also performs weekly self-diagnostic tests.
An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements. The ATS50 automatic transfer switch operates a 50 amp, 12 circuit load (8 space sub panel allows up to 4 tandem breakers). It is ideal for homeowners who want to power emergency essentials during a power outage as opposed to the whole house. It is housed in a NEMA 3R rated enclosure for outdoor use.
Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.
The Champion 439cc OHV engine provides 8.5-kilowatts of continuous power on propane and 7.5-kilowatts on natural gas. This 8.5-kW-rated unit produces 35.4 amps at 240 volts on propane and 31.3 amps at 240 volts on natural gas.
The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class. The residential-friendly 59.5 dBA has about the same noise level as normal conversation.
The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.
This generator is available for all 50 states, and the ATS50 is UL and cUL listed in the US and Canada. Buy with confidence – Champion Support and our nationwide network of service centers will back your purchase up with a 10-year limited warranty and FREE lifetime technical support.
What’s included
Oil Drain Pan
Flexible Fuel Line
HSB Enclosure Keys
Battery Cables & Hardware
LPG Jets
Jet Change Tool
Totally Automatic
The ATS50 Emergency Essentials Automatic Transfer Switch has 12 available circuits available and provides seamless power to your home during an outage
Quietest-in-Class
Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 59.5 dBA noise level
Reliable
24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no warming kit necessary, plus the generator performs weekly self-diagnostic tests
Powerful
The 8.5-kilowatt generator provides 8500 watts of continuous power on propane and 7500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
Champion Support
Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts
Specs
Specs
Propane Rated Watts
8500W
Natural Gas Rated Watts
7500W
Propane Rated Amps at 120V
70.8A
Propane Rated Amps at 240V
35.4A
Natural Gas Rated Amps at 120V
62.5A
Natural Gas Rated Amps at 240V
31.3A
Rated Volts
120/240
Rated Frequency
60Hz
Phase
Single
Propane Fuel Consumption at 1/2 Load
1.0 gal/h
Propane Fuel Consumption at Full load
1.5 gal/h
Natural Gas Fuel Consumption at 1/2 Load
97.5 ft3/h
Natural Gas Fuel Consumption at Full Load
139.8 ft3/h
Main Line Circuit Breaker
35.5A
Starting System
Automatic 24V
Operational Volume
59.5 dBA
Cooling System
Air Cooled
AC Ton Rating
3T
Generator Enclosure
Steel
Generator Mounting Pad
Composite
Engine Brand
Champion
Engine Size
439cc
Engine Type
4-stroke
Engine Speed
3600
Fuel Type
Propane (LPG), Natural Gas (NG)
Engine Oil Type
Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity
1.2 qt.
Engine Oil Included
No
Low Oil Shut-Off
Yes
UL Listing
cULus
EPA Certified
Yes
Switch Amps
50A
Switch Volts
120/240
Switch Type
Select Circuit
Switch Circuits
12
Switch Poles
2
Load Management
No
Service Entry Rated
No
Switch Enclosure
NEMA 3R
Dimensions
Length
49.0 in.
Width
28.0 in.
Height
28.0 in.
Weight
365.1 lb.
