ESCO HD Lightweight 55-Ton High Lift Hydraulic Jack

The ESCO Professional Aluminum Jack Cylinder Series is designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including trucks, tractors, mining, and construction equipment.
Features
Lightweight Aluminum Constructed Hydraulic Cylinder
Must-Have For Heavy Lifting Applications
Perfect Jack For Off-Highway Tire Work
For Use With 10,000 PSI Pumps

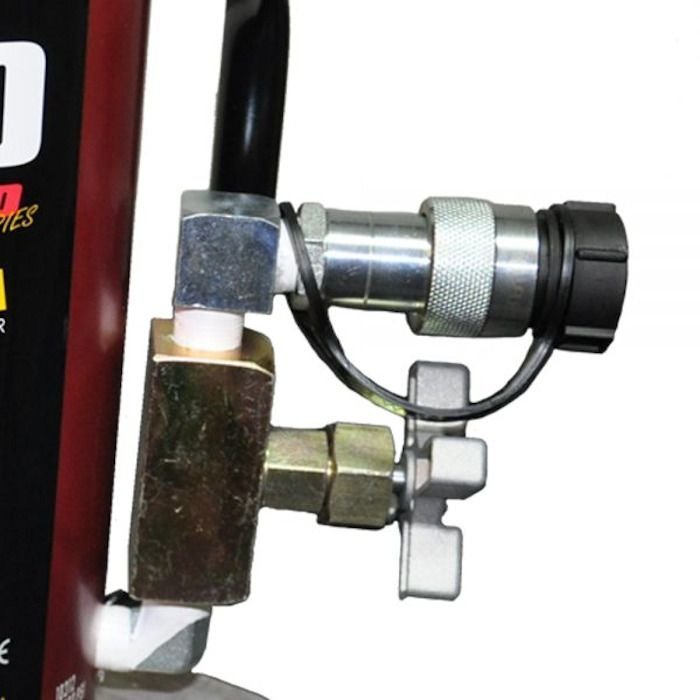

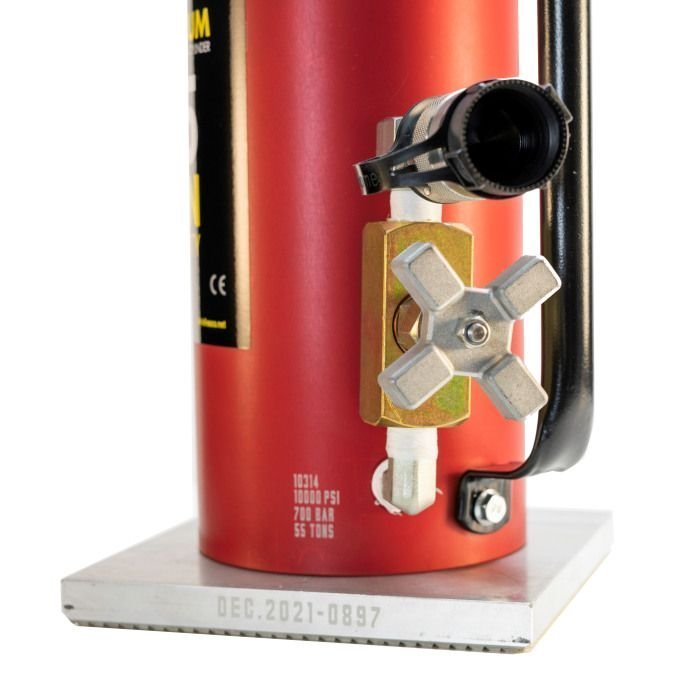

Ships Completely Assembled With Valve, Coupler, And 8″ X 8″ (203mm X 203mm) Base
Ideal For OTR, Mining, Agricultural, And Construction Applications
Robust 11/16″ Cylinder Wall For Heavy-Duty Use
6″ (152mm) Stroke With 26″ (662mm) Maximum Height

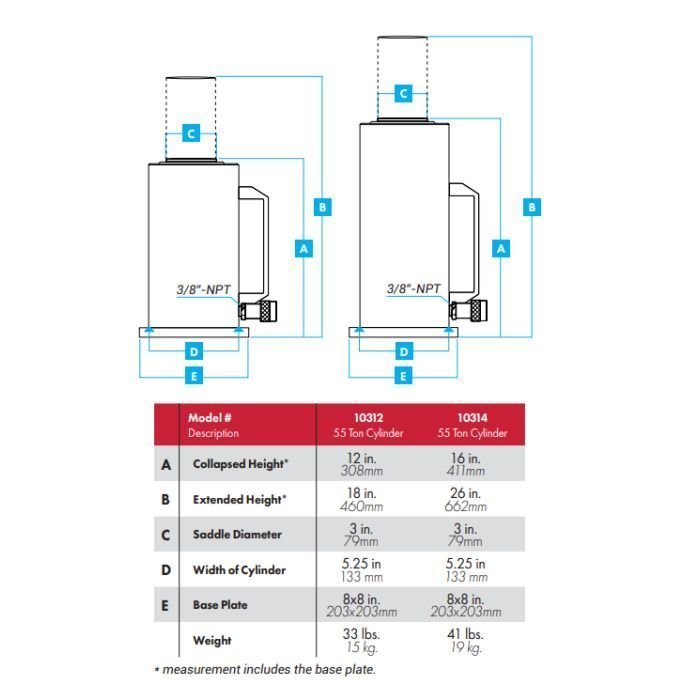

Specifications
Lifting Capacity: 55 Tons
Stroke: 6″ (152mm)
Max Pressure: 10,000 PSI
Min. Height: 16″ (411mm) – Includes Base Plate
Max. Height: 26″ (662mm) – Includes Base Plate
Saddle Diameter: 3″ (79mm)
Cylinder Width: 5.25″ (133mm)
Cylinder Wall: 11/16″ (17mm)
Base Plate: 8″ x 8″ (203 x 203mm)
Weight: 41 lbs. (15 kg)
Warranty: (3) Year Limited*
